soilwater.h File Reference
#include <stdio.h>
#include "swconst.h"
+ Include dependency graph for soilwater.h:

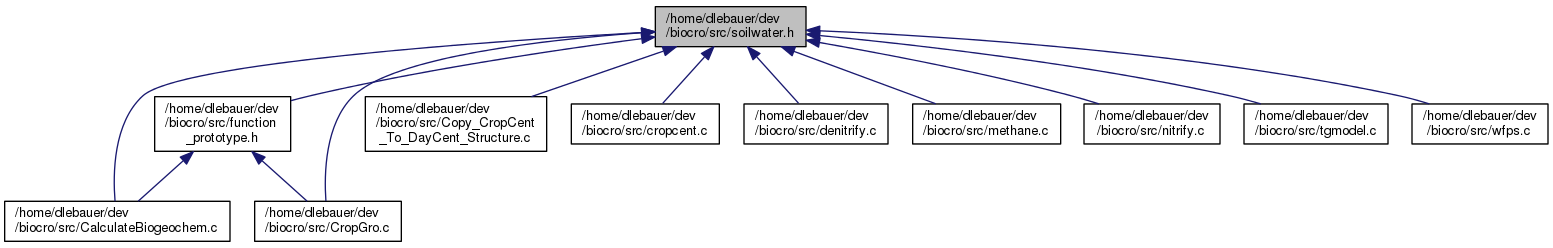

+ This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures

struct  FLAG_S

struct  FILES_S

struct  LAYERPAR_S

struct  SITEPAR_S

struct  SOIL_S


Macros

#define FILEPATH_MAX   60 /* Max # of chars in a file path-name */

#define INPTSTRLEN   120 /* Max length of input file line */

#define OTPTSTRLEN   80 /* Max length of output file string */


Typedefs

typedef struct FLAG_S * FLAG_SPT

typedef struct FILES_S * FILES_SPT

typedef struct LAYERPAR_S * LAYERPAR_SPT

typedef struct SITEPAR_S * SITEPAR_SPT

typedef struct SOIL_S * SOIL_SPT


Functions

double c_shwave (int month, double rlatitude, int jday)

void getdiff (double *valsubt, double valtochk, double valmin)

void initdaily (int month, double biolive, double biodead, double blitter, double *biomass, double *blivelai, double *vegcov, double *totagb, double *stcrlai, LAYERPAR_SPT layers)

void initlyrs (char *soilname, LAYERPAR_SPT layers, FLAG_SPT flags, SITEPAR_SPT sitepar)

void initsite (char *sitename, SITEPAR_SPT sitepar, LAYERPAR_SPT layers, FLAG_SPT flags, double sradadj[NMONTH], double *tminslope, double *tminintercept, double *maxphoto, double *bioabsorp)

void initsrad (double elevation, double latitude, double aspect, double slope, double ehoriz, double whoriz, double daylength[NDAY])

void litstcr_evap (double *cwlit, double *cwstcr, double *petleft, double *aet, double totlit, double totstcr)

double petrad (int jday, int month, double cldcov, double windsp, double rhumid, double rlatitude, double avgtemp, double reflec, double solrad, double albedo, double snowpack)

double pevapdly (double tmin, double tmax, double sitlat, double tmn2m[], double tmx2m[], int jday, int month)

void setamov (double amovdly[CENTMAXLYR], int nlayer, double wfluxout[MAXLYR], int numlyrs, int lbnd[CENTMAXLYR])

void setasmos (double asmos[CENTMAXLYR], int *nlayer, double swcinit[MAXLYR], int *numlyrs, double avh2o[3], double rwcf[CENTMAXLYR])

void showlyrs (double swc[MAXLYR], int numlyrs)

double svapor (double atemp)

double tanfunc (double z, double a, double b, double c, double d)

void wfps (LAYERPAR_SPT layers)

double wfunc_pulse (double *ppt, double *snow)

void nitrify (double *ammonium, double *nh4_2_no3, double *maxt, double *nreduce, SITEPAR_SPT sitepar, LAYERPAR_SPT layers, SOIL_SPT soil)

void denitrify (double *newCO2, double *newNO3, double nitrate[], double tfluxout[], double *critflow, double frlechd[], double stream[], double *basef, double *stormf, double *inorglch, double *Dn2oflux, double *Dn2flux, double stdfieldc, double stdbulkd, double dN2lyr[], double dN2Olyr[], int *jday, SITEPAR_SPT sitepar, LAYERPAR_SPT layers)

void methane_oxidation (double *CH4, int *isdecid, int *isagri, LAYERPAR_SPT layers, SOIL_SPT soil)

void trace_gas_model (int *jday, double *time, double *newminrl, double *ammonium, double nitrate[], int *texture, double *sand, double *silt, double *clay, double *afiel, double *bulkd, double *maxt, double *ppt, double *snow, double *avgwfps, double *stormf, double *basef, double frlechd[], double stream[], double *inorglch, double *critflow, double wfluxout[], double *newCO2, double *NOflux, double *Nn2oflux, double *Dn2oflux, double *Dn2flux, double *CH4, int *isdecid, int *isagri, double *grass_lai, double *tree_lai, double *NOabsorp_grass, double *NOabsorp_tree, double *nit_amt, double *nreduce, double dN2lyr[], double dN2Olyr[], SITEPAR_SPT sitepar, LAYERPAR_SPT layers, SOIL_SPT soil)


Macro Definition Documentation

#define FILEPATH_MAX   60 /* Max # of chars in a file path-name */
#define INPTSTRLEN   120 /* Max length of input file line */
#define OTPTSTRLEN   80 /* Max length of output file string */

Typedef Documentation

typedef struct FILES_S * FILES_SPT
typedef struct FLAG_S * FLAG_SPT
typedef struct LAYERPAR_S * LAYERPAR_SPT
typedef struct SITEPAR_S * SITEPAR_SPT
typedef struct SOIL_S * SOIL_SPT

Function Documentation

double c_shwave ( int  month,
double  rlatitude,
int  jday
)
void denitrify ( double *  newCO2,
double *  newNO3,
double  nitrate[],
double  tfluxout[],
double *  critflow,
double  frlechd[],
double  stream[],
double *  basef,
double *  stormf,
double *  inorglch,
double *  Dn2oflux,
double *  Dn2flux,
double  stdfieldc,
double  stdbulkd,
double  dN2lyr[],
double  dN2Olyr[],
int *  jday,
SITEPAR_SPT  sitepar,
LAYERPAR_SPT  layers
)
void getdiff ( double *  valsubt,
double  valtochk,
double  valmin
)
void initdaily ( int  month,
double  biolive,
double  biodead,
double  blitter,
double *  biomass,
double *  blivelai,
double *  vegcov,
double *  totagb,
double *  stcrlai,
LAYERPAR_SPT  layers
)
void initlyrs ( char *  soilname,
LAYERPAR_SPT  layers,
FLAG_SPT  flags,
SITEPAR_SPT  sitepar
)
void initsite ( char *  sitename,
SITEPAR_SPT  sitepar,
LAYERPAR_SPT  layers,
FLAG_SPT  flags,
double  sradadj[NMONTH],
double *  tminslope,
double *  tminintercept,
double *  maxphoto,
double *  bioabsorp
)
void initsrad ( double  elevation,
double  latitude,
double  aspect,
double  slope,
double  ehoriz,
double  whoriz,
double  daylength[NDAY]
)
void litstcr_evap ( double *  cwlit,
double *  cwstcr,
double *  petleft,
double *  aet,
double  totlit,
double  totstcr
)
void methane_oxidation ( double *  CH4,
int *  isdecid,
int *  isagri,
LAYERPAR_SPT  layers,
SOIL_SPT  soil
)
98  {
99  int ilyr;
100  double bulkdensity;
101  double fieldcapacity;
102  double soiltemp;
103  double soilwater;
104  double wfps;
105  double CH4max;
106  double Dopt;
107  double Wmin;
108  double Wmax;
109  double Wopt;
110  double agri_adjust;
111  double temp_adjust;
112  double watr_adjust;
113  double wfps_adjust;
114  double percentlayer;
115  double temp;
116
117 /*
118  extern LAYERPAR_SPT layers;
119  extern SOIL_SPT soil;
120 */
121  /* Compute a weighted average for soil temperature, field capacity, */
122  /* bulk density, water filled pore space, and volumetric soil water */
123  /* content in top 15 cm of soil profile */
124  ilyr = 0;
125  bulkdensity = 0.0;
126  fieldcapacity = 0.0;
127  soiltemp = 0.0;
128  soilwater = 0.0;
129  wfps = 0.0;
130  for (ilyr = 0; ilyr < layers->numlyrs; ilyr++) {
131  if (layers->dpthmn[ilyr] < CH4DEPTH) {
132  if (layers->dpthmx[ilyr] <= CH4DEPTH) {
133  bulkdensity += layers->bulkd[ilyr] * layers->width[ilyr] /
134  CH4DEPTH;
135  fieldcapacity += layers->fieldc[ilyr] * layers->width[ilyr] /
136  CH4DEPTH;
137  soiltemp += soil->soiltavg[ilyr] * layers->width[ilyr] / CH4DEPTH;
138  soilwater += layers->wfps[ilyr] * layers->width[ilyr] / CH4DEPTH;
139  wfps += layers->wfps[ilyr] * layers->width[ilyr] / CH4DEPTH;
140  } else if ((layers->dpthmx[ilyr] - layers->dpthmn[ilyr]) > 0.0) {
141  percentlayer = (CH4DEPTH - layers->dpthmn[ilyr]) /
142  (layers->dpthmx[ilyr] - layers->dpthmn[ilyr]);
143  bulkdensity += layers->bulkd[ilyr] * layers->width[ilyr] /
144  CH4DEPTH * percentlayer;
145  fieldcapacity += layers->fieldc[ilyr] * layers->width[ilyr] /
146  CH4DEPTH * percentlayer;
147  soiltemp += soil->soiltavg[ilyr] * layers->width[ilyr] /
148  CH4DEPTH * percentlayer;
149  soilwater += layers->wfps[ilyr] * layers->width[ilyr] / CH4DEPTH *
150  percentlayer;
151  wfps += layers->wfps[ilyr] * layers->width[ilyr] / CH4DEPTH *
152  percentlayer;
153  }
154  }
155  }
156  /* Convert from water filled pore space to volumetric water */
157  soilwater = soilwater * (1.0 - (bulkdensity / PARTDENS));
158  soilwater *= 100.0;
159
160  /* CH4 oxidation for a deciduous system */
161  if (*isdecid) {
162  CH4max = 40.0 - 18.3 * bulkdensity;
163  temp_adjust = 0.0209 * soiltemp + 0.845;
164  /* Use bounded value for wfps_adjust if wfps falls below a critical */
165  /* value, cak - 11/12/02 */
166  if (wfps <= 0.05) {
167  wfps_adjust = 0.1;
168  } else {
169  wfps_adjust = pow((10.0 * wfps - 0.5) / (1.84 - 0.5), 0.13);
170  wfps_adjust *= pow((10.0 * wfps - 55) / (1.84 - 55),
171  (0.13 * (55 - 1.84)) / (1.84 - 0.5));
172  wfps_adjust = max(0.1, wfps_adjust);
173  }
174  *CH4 = CH4max * wfps_adjust * temp_adjust;
175
176  } else {
177  /* CH4 oxidation for a grassland/coniferous/tropical system */
178  Wmin = 3.0 * fieldcapacity - 0.28;
179  Wopt = 6.3 * fieldcapacity - 0.58;
180  Wmax = 10.6 * fieldcapacity + 1.9;
181  temp = Wopt * 0.1 / (1.0 - (bulkdensity / PARTDENS));
182  Dopt = diffusiv(&fieldcapacity, &bulkdensity, &temp);
183  CH4max = 53.8 * Dopt + 0.58;
184  if ((0.1*soilwater < Wmin) || 0.1*soilwater > Wmax) {
185  watr_adjust = 0.1;
186  } else {
187  watr_adjust = pow(((0.1 * soilwater - Wmin) / (Wopt - Wmin)), 0.4) *
188  pow(((0.1 * soilwater - Wmax) / (Wopt - Wmax)),
189  ((0.4 * (Wmax - Wopt)) / (Wopt - Wmin)));
190  watr_adjust = max(0.1, watr_adjust);
191  }
192  if (*isagri) {
193  if (Dopt < 0.15) {
194  agri_adjust = 0.9;
195  } else if (Dopt > 0.28) {
196  agri_adjust = 0.28;
197  } else {
198  agri_adjust = -4.6 * Dopt + 1.6;
199  }
200  } else {
201  agri_adjust = 1.0;
202  }
203  temp_adjust = (soiltemp * max(0.11, Dopt) * 0.095) + 0.9;
204  *CH4 = CH4max * watr_adjust * temp_adjust * agri_adjust;
205  }
206
207  return;
208  }
SOIL_S::soiltavg
double soiltavg[MAXLYR]
Definition: soilwater.h:142
CH4DEPTH
#define CH4DEPTH
Definition: methane.c:95
LAYERPAR_S::fieldc
double fieldc[MAXLYR]
Definition: soilwater.h:76
LAYERPAR_S::dpthmx
double dpthmx[MAXLYR]
Definition: soilwater.h:74
LAYERPAR_S::numlyrs
int numlyrs
Definition: soilwater.h:86
LAYERPAR_S::bulkd
double bulkd[MAXLYR]
Definition: soilwater.h:75
wfps
void wfps(LAYERPAR_SPT layers)
Definition: wfps.c:50
LAYERPAR_S::width
double width[MAXLYR]
Definition: soilwater.h:71
max
#define max(a, b)
Definition: diffusiv.c:67
diffusiv
double diffusiv(double *A, double *bulkden, double *wfps)
Definition: diffusiv.c:69
LAYERPAR_S::wfps
double wfps[MAXLYR]
Definition: soilwater.h:92
PARTDENS
#define PARTDENS
Definition: diffusiv.c:65
LAYERPAR_S::dpthmn
double dpthmn[MAXLYR]
Definition: soilwater.h:73
void nitrify ( double *  ammonium,
double *  nh4_2_no3,
double *  maxt,
double *  nreduce,
SITEPAR_SPT  sitepar,
LAYERPAR_SPT  layers,
SOIL_SPT  soil
)
86  {
87  int debug = 0;
88  int ilyr;
89  double MaxRate = 0.15;
90  double base_flux;
91  double fNsoilt;
92  double fNwfps;
93  double fNnh4;
94  double fNph;
95  double A[4]; /* parameters to parton-innis functions */
96  double grams_soil;
97  double nh4_conc;
98  double avgwfps;
99  double min_ammonium = 0.03;
100  double abiotic;
101  double rel_wc[4], avg_rel_wc, avgfc, avgstemp;
102  double absoluteMaxRate;
103
104 /*
105  extern LAYERPAR_SPT layers;
106  extern SITEPAR_SPT sitepar;
107  extern SOIL_SPT soil;
108 */
109
110  *nh4_2_no3 = 0.0;
111
112  if (*ammonium < min_ammonium) {
113  if (debug) {
114  fprintf(stdout, "CANNOT NITRIFY, ammonium too small\n");
115  }
116  goto RET;
117  }
118
119  /* Convert ammonium (g/m2) to nh4_conc (ppm) */
120  /* Assume all ammonium occurs in the top 15 cm */
121 /* NOTE: This should be changed so that nitrification occurs as a continuous
122  function by depth rather than assuming that the top 3 soil layers
123  will sum to 15 cm */
124
125  grams_soil = (layers->bulkd[0]*layers->width[0] +
126  layers->bulkd[1]*layers->width[1] +
127  layers->bulkd[2]*layers->width[2])*100*100;
128
129  nh4_conc = *ammonium/grams_soil*1.0E6;
130
131  if (debug > 1) {
132  fprintf(stdout, "ammonium = %10.4lf\n", *ammonium);
133  fprintf(stdout, "nh4_conc = %10.4lf\n", nh4_conc);
134  }
135
136  /* Compute the effect of soil water on Nitrification (0-1). */
137  /* Use relative water content for this calculation when the */
138  /* soil is drier than field capacity. When the soil is wetter */
139  /* field capacity use water filled pore space. cak - 06/16/04 */
140
141  /* Compute relative water content in the 2nd and 3rd soil layers, */
142  /* cak - 08/19/04 */
143  for (ilyr = 1; ilyr < 3; ilyr ++) {
144  rel_wc[ilyr] = (layers->swc[ilyr]/(layers->width[ilyr]) -
145  layers->swclimit[ilyr]) /
146  (layers->fieldc[ilyr] - layers->swclimit[ilyr]);
147  if (rel_wc[ilyr] < 0.0) {
148  rel_wc[ilyr] = 0.0;
149  } else if (rel_wc[ilyr] > 1.0) {
150  rel_wc[ilyr] = 1.0;
151  }
152  rel_wc[ilyr] *= layers->width[ilyr];
153  }
154  avg_rel_wc = (rel_wc[1] + rel_wc[2]) /
155  (layers->width[1] + layers->width[2]);
156
157  if (avg_rel_wc < 1.0) {
158  fNwfps = 1.0/(1.0 + 30.0 * exp(-9.0 * avg_rel_wc));
159  } else {
160  /* Compute average water filled pore space in 2nd and 3rd soil */
161  /* layers, cak - 08/19/04 */
162  wfps(layers);
163  avgwfps = (layers->wfps[1]*layers->width[1] +
164  layers->wfps[2]*layers->width[2]) /
165  (layers->width[1] + layers->width[2]);
166  if (debug > 1) {
167  fprintf(stdout, "avgwfps = %6.2lf\n", avgwfps);
168  }
169  avgfc = (layers->fieldc[1]*layers->width[1] +
170  layers->fieldc[2]*layers->width[2]) /
171  (layers->width[1] + layers->width[2]);
172  /* Line function with two known points and a new X, calculate Y */
173  /* slope = (y2 - y1) / (x2 - x1) */
174  /* y = slope * (x - x2) + y2 */
175  fNwfps = (0.0 - 1.0) / (1.0 - avgfc) * (avgwfps - 1.0) + 0.0;
176  }
177
178  /* Compute the soil temperature effect on Nitrification */
179  A[0] = 35.0;
180  A[1] = -5.0;
181  A[2] = 4.5;
182  A[3] = 7.0;
183  /* Rates of nitrification were too low at low soil temperatures, */
184  /* shift the curve so that the nitrification rates are effectively */
185  /* higher for cooler sites, this change does not affect sites with */
186  /* hot temperatures, cak - 11/25/03 */
187  avgstemp = (soil->soiltavg[1] * layers->width[1] +
188  soil->soiltavg[2] * layers->width[2]) /
189  (layers->width[1] + layers->width[2]);
190  if (*maxt >= 35.0) {
191  A[0] = *maxt;
192  fNsoilt = f_gen_poisson_density(avgstemp,A);
193  } else {
194  fNsoilt = f_gen_poisson_density(avgstemp+(A[0]-*maxt),A);
195  }
196
197  /* Compute pH effect on nitrification */
198  A[0] = 5.0;
199  A[1] = 0.56;
200  A[2] = 1.0;
201  A[3] = 0.45;
202  fNph = f_arctangent(layers->pH[1], A);
203
204  /* Compute the Ammonium effect on Nitrification */
205  A[0] = 1.0;
206  A[1] = -0.0105;
207  A[2] = 0.0;
208  A[3] = 0.0;
209  fNnh4 = 1.0 - f_exponential(nh4_conc, A);
210
211  /* Compute amount of ammonium that goes to nitrate during */
212  /* nitrification */
213  if (debug > 1) {
214  fprintf(stdout, "%6s %6s %6s %6s\n","fNwfps","fNsoilt", "fNph",
215  "fNnh4");
216  fprintf(stdout, "%6.4lf %6.4lf %6.4lf %6.4lf\n", fNwfps, fNsoilt, fNph,
217  fNnh4);
218  }
219  /* The base_flux is equivalent to 0.1 gN/ha/day */
220  base_flux = 0.1/10000.0;
221  abiotic = max(fNwfps * fNsoilt, sitepar->Ncoeff);
222  absoluteMaxRate = min(0.4, *ammonium * MaxRate);
223  *nh4_2_no3 = absoluteMaxRate * fNph * abiotic * *nreduce +
224  base_flux;
225
226  if ((*ammonium - *nh4_2_no3) > min_ammonium) {
227  *ammonium -= *nh4_2_no3;
228  } else {
229  *nh4_2_no3 = min(*nh4_2_no3, *ammonium - min_ammonium);
230  *ammonium = min_ammonium;
231  }
232
233 RET: return;
234  }
SOIL_S::soiltavg
double soiltavg[MAXLYR]
Definition: soilwater.h:142
f_arctangent
double f_arctangent(double x, double A[])
Definition: pi_funcs.c:71
LAYERPAR_S::fieldc
double fieldc[MAXLYR]
Definition: soilwater.h:76
LAYERPAR_S::pH
double pH[MAXLYR]
Definition: soilwater.h:85
LAYERPAR_S::swclimit
double swclimit[MAXLYR]
Definition: soilwater.h:83
min
#define min(a, b)
Definition: diffusiv.c:66
LAYERPAR_S::bulkd
double bulkd[MAXLYR]
Definition: soilwater.h:75
wfps
void wfps(LAYERPAR_SPT layers)
Definition: wfps.c:50
f_exponential
double f_exponential(double x, double A[])
Definition: pi_funcs.c:88
LAYERPAR_S::width
double width[MAXLYR]
Definition: soilwater.h:71
SITEPAR_S::Ncoeff
double Ncoeff
Definition: soilwater.h:124
f_gen_poisson_density
double f_gen_poisson_density(double x, double A[])
Definition: pi_funcs.c:151
max
#define max(a, b)
Definition: diffusiv.c:67
LAYERPAR_S::wfps
double wfps[MAXLYR]
Definition: soilwater.h:92
LAYERPAR_S::swc
double swc[MAXLYR]
Definition: soilwater.h:89
double petrad ( int  jday,
int  month,
double  cldcov,
double  windsp,
double  rhumid,
double  rlatitude,
double  avgtemp,
double  reflec,
double  solrad,
double  albedo,
double  snowpack
)
double pevapdly ( double  tmin,
double  tmax,
double  sitlat,
double  tmn2m[],
double  tmx2m[],
int  jday,
int  month
)
void setamov ( double  amovdly[CENTMAXLYR],
int  nlayer,
double  wfluxout[MAXLYR],
int  numlyrs,
int  lbnd[CENTMAXLYR]
)
void setasmos ( double  asmos[CENTMAXLYR],
int *  nlayer,
double  swcinit[MAXLYR],
int *  numlyrs,
double  avh2o[3],
double  rwcf[CENTMAXLYR]
)
void showlyrs ( double  swc[MAXLYR],
int  numlyrs
)
double svapor ( double  atemp)
double tanfunc ( double  z,
double  a,
double  b,
double  c,
double  d
)
void trace_gas_model ( int *  jday,
double *  time,
double *  newminrl,
double *  ammonium,
double  nitrate[],
int *  texture,
double *  sand,
double *  silt,
double *  clay,
double *  afiel,
double *  bulkd,
double *  maxt,
double *  ppt,
double *  snow,
double *  avgwfps,
double *  stormf,
double *  basef,
double  frlechd[],
double  stream[],
double *  inorglch,
double *  critflow,
double  wfluxout[],
double *  newCO2,
double *  NOflux,
double *  Nn2oflux,
double *  Dn2oflux,
double *  Dn2flux,
double *  CH4,
int *  isdecid,
int *  isagri,
double *  grass_lai,
double *  tree_lai,
double *  NOabsorp_grass,
double *  NOabsorp_tree,
double *  nit_amt,
double *  nreduce,
double  dN2lyr[],
double  dN2Olyr[],
SITEPAR_SPT  sitepar,
LAYERPAR_SPT  layers,
SOIL_SPT  soil
)
133  {
134
135  /* Local Variables */
136
137  int debug = 0;
138  int ilyr;
139  int *soilclassification;
140 /* double netmn_to_no3 = 0.20; */
141  double netmn_to_no3 = 0.0;
142  double turnovfrac = 0.02;
143  double newNH4;
144  double newNO3;
145  double nh4_to_no3;
146  double krainNO;
147  double potential_NOflux;
148  double dDO;
149  double stdbulkd;
150  double stdfieldc;
151  double NO_N2O_ratio;
152  double NH4_to_NO;
153  double npool_sum;
154  double canopy_reduction;
155  double NOabsorp;
156  double total_lai;
157
158 // extern SITEPAR_SPT sitepar;
159
160  *Nn2oflux = 0.0;
161  *NOflux = 0.0;
162  *Dn2oflux = 0.0;
163  *Dn2flux = 0.0;
164
165  /* Compute fraction of new mineralization that is converted to NH4 */
166  /* and NO3 */
167
168  if (debug) {
169  printf("newminrl = %6.4lf\n", *newminrl);
170  }
171
172  if (*newminrl <= 0.0) {
173
174  /* Immobilization */
175  /* Distribute N loss proportionally between ammonium and nitrate */
176  /* layers. There is no check that these N pools won't go negative */
177  /* once immobilization is accounted for. It is assumed that the */
178  /* immobilization calculation by the decomp model is moderated by */
179  /* the supply of minerl N. */
180
181  npool_sum = (*ammonium > 0.0) ? *ammonium : 0.0;
182  for (ilyr=0; ilyr < MAXLYR; ilyr ++) {
183  npool_sum += (nitrate[ilyr] > 0.0) ? nitrate[ilyr] : 0.0;
184  }
185  if (*ammonium > 0.0) {
186  *ammonium += *newminrl * (*ammonium / npool_sum);
187  }
188  for (ilyr=0; ilyr < MAXLYR; ilyr ++) {
189  if (nitrate[ilyr] > 0.0) {
190  nitrate[ilyr] += *newminrl * (nitrate[ilyr] / npool_sum);
191  }
192  }
193  newNH4 = 0.0;
194  newNO3 = 0.0;
195  } else {
196  /* Mineralization */
197  newNH4 = *newminrl * (1.0 - netmn_to_no3);
198  newNO3 = *newminrl * netmn_to_no3;
199  }
200
201  if (debug) {
202  printf("newNH4 = %6.4lf\n", newNH4);
203  printf("newNO3 = %6.4lf\n", newNO3);
204  }
205
206  *ammonium += newNH4;
207
208  /* Compute the amount of NH4 that is converted to NO3 due to */
209  /* nitrification */
210
211  nitrify(ammonium, &nh4_to_no3, maxt, nreduce,sitepar,layers,soil);
212  *nit_amt = nh4_to_no3;
213
214  if (debug) {
215  printf("texture = %1d\n", *texture);
216  printf("nh4_to_no3 = %6.4lf\n", nh4_to_no3);
217  printf("maxt = %6.4lf\n", *maxt);
218  }
219
220  /* Compute fraction of new NO3 that is converted to N2O and NO */
221
222  krainNO = nox_pulse(ppt, snow);
223
224  getsoilprop(sand, silt, clay, &stdbulkd, &stdfieldc, texture,&soilclassification);
225
226  /* Use standard field capacity and bulk density according */
227  /* to the soil class in the texture triangle -mdh 10/26/99 */
228 /* dDO = diffusiv(afiel(1), bulkd, *avgwfps) */
229  /* No, change back to soils.in field capacity and bulk density. */
230  /* -mdh 6/20/00 */
231 /* dDO = diffusiv(&stdfieldc, &stdbulkd, avgwfps); */
232  dDO = diffusiv(afiel, bulkd, avgwfps);
233
234  newNO3 += nh4_to_no3;
235
236  if (newNO3 > 1.0E-30) {
237  *Nn2oflux = newNO3 * turnovfrac * sitepar->N2Oadjust;
238  newNO3 -= *Nn2oflux;
239
240  /* Another update to NO flux calculation -mdh 10/26/99 */
241
242 /* NO_N2O_ratio = 15.23 + (35.45*atan(0.676*PI*(10*dDO-1.86)))/PI; */
243  NO_N2O_ratio = 8.0 + (18.0*atan(0.75*PI*(10*dDO-1.86)))/PI;
244  /* If this is an agricultural system adjust the NO to N2O ratio */
245  /* cak - 01/28/03 */
246  if (*isagri) {
247 /* NO_N2O_ratio *= 0.2; */
248  NO_N2O_ratio *= 0.5;
249  }
250  potential_NOflux = NO_N2O_ratio * *Nn2oflux * krainNO;
251
252  if (potential_NOflux <= newNO3) {
253  *NOflux = potential_NOflux;
254  newNO3 -= *NOflux;
255  } else {
256  /* take N out of ammonimum to get max NOflux possible */
257  NH4_to_NO = min(*ammonium, (potential_NOflux-newNO3));
258  *NOflux = newNO3 + NH4_to_NO;
259  *ammonium -= NH4_to_NO;
260  newNO3 = 0;
261  }
262
263  if (*NOflux < 1.0E-30) {
264  *NOflux = 0.0;
265  }
266
267  } else {
268  NO_N2O_ratio = 0.0;
269  }
270
271  /* Compute the N2O flux (Dn2oflux) and N2 flux (Dn2flux) due to */
272  /* denitrification */
273
274 denitrify(newCO2, &newNO3, nitrate, wfluxout, critflow, frlechd,
275  stream, basef, stormf, inorglch, Dn2oflux, Dn2flux,
276  stdfieldc, stdbulkd, dN2lyr, dN2Olyr, jday,sitepar,layers);
277
278
279  /* Now compute NOflux from denitrification (new calculation */
280  /* -mdh 6/1/00 */
281 /* potential_NOflux = NO_N2O_ratio * *Dn2oflux * krainNO; */
282  /* For denitrification, krainNO is >= 1.0 -mdh 6/22/00 */
283
284  potential_NOflux = NO_N2O_ratio * *Dn2oflux * min(1.0, krainNO);
285
286  if (potential_NOflux <= *ammonium) {
287  /* Take all N out of ammonimum pool */
288  *NOflux += potential_NOflux;
289  *ammonium -= potential_NOflux;
290  } else {
291  /* Take N out of available ammonium, then convert some Dn2oflux to */
292  /* NOflux */
293  *NOflux += *ammonium;
294  potential_NOflux -= *ammonium;
295  *ammonium = 0.0;
296  if (potential_NOflux <= *Dn2oflux) {
297  *NOflux += potential_NOflux;
298  *Dn2oflux -= potential_NOflux;
299  }
300  }
301
302  /* Compute the amount of the soil NO flux that is absorped by the canopy, cak - 09/23/03 */
303  total_lai = *grass_lai + *tree_lai;
304  if (total_lai > 0.0) {
305  canopy_reduction = 0.0077 * pow(total_lai,2) + -0.13 * total_lai + 0.99;
306  /* We need to retain the soil flux value */
307
308  /* This previous code did not maintain and N balance -Melannie 9/26/2011 */
309  /* NOsoil = *NOflux; */
310  /* *NOflux *= canopy_reduction; */
311  /* NOabsorp = NOsoil - *NOflux; */
312
313  NOabsorp = *NOflux * (1 - canopy_reduction);
314  if (NOabsorp > 0.0)
315  {
316  *NOabsorp_grass = NOabsorp * (*grass_lai / total_lai);
317  *NOabsorp_tree = NOabsorp * (*tree_lai / total_lai);
318  *NOflux -= NOabsorp;
319  }
320
321  /* NO absorped by canopy goes to crop storage and forest storage */
322  /* Reset NOflux using the retained value */
323  /* *NOflux = NOsoil; */
324  }
325
326  if (*NOflux < 1.0E-30) {
327  *NOflux = 0.0;
328  }
329  if (*Nn2oflux < 1.0E-30) {
330  *Nn2oflux = 0.0;
331  }
332  if (*Dn2oflux < 1.0E-30) {
333  *Dn2oflux = 0.0;
334  }
335  if (*Dn2flux < 1.0E-30) {
336  *Dn2flux = 0.0;
337  }
338
339  /* Calculate methane oxidation */
340  methane_oxidation(CH4, isdecid, isagri,layers,soil);
341  // wrtsoiln(time, jday,ammonium,nitrate);
342  return;
343  }
SITEPAR_S::N2Oadjust
double N2Oadjust
Definition: soilwater.h:128
PI
#define PI
Definition: pi_funcs.c:43
min
#define min(a, b)
Definition: diffusiv.c:66
denitrify
void denitrify(double *newCO2, double *newNO3, double nitrate[MAXLYR], double wfluxout[MAXLYR], double *critflow, double frlechd[], double stream[], double *basef, double *stormf, double *inorglch, double *Dn2oflux, double *Dn2flux, double stdfieldc, double stdbulkd, double dN2lyr[], double dN2Olyr[], int *jday, SITEPAR_SPT sitepar, LAYERPAR_SPT layers)
Definition: denitrify.c:141
diffusiv
double diffusiv(double *A, double *bulkden, double *wfps)
Definition: diffusiv.c:69
getsoilprop
void getsoilprop(double *asand, double *asilt, double *aclay, double *bulkden, double *fieldcap, int *texture, int *soilclassification)
Definition: getsoilprop.c:73
nox_pulse
double nox_pulse(double *ppt, double *snow)
Definition: nox_pulse.c:63
nitrify
void nitrify(double *ammonium, double *nh4_2_no3, double *maxt, double *nreduce, SITEPAR_SPT sitepar, LAYERPAR_SPT layers, SOIL_SPT soil)
Definition: nitrify.c:84
methane_oxidation
void methane_oxidation(double *CH4, int *isdecid, int *isagri, LAYERPAR_SPT layers, SOIL_SPT soil)
Definition: methane.c:97
MAXLYR
#define MAXLYR
Definition: swconst.h:8
void wfps ( LAYERPAR_SPT  layers)
51  {
52  int ilyr;
53  double swcfrac;
54  double porespace;
55
56  for(ilyr=0; ilyr < layers->numlyrs; ilyr++) {
57
58  swcfrac = layers->swc[ilyr] / layers->width[ilyr];
59  porespace = 1.0 - layers->bulkd[ilyr] / PARTDENS;
60  layers->wfps[ilyr] = swcfrac/porespace;
61  }
62
63  return;
64  }
LAYERPAR_S::numlyrs
int numlyrs
Definition: soilwater.h:86
LAYERPAR_S::bulkd
double bulkd[MAXLYR]
Definition: soilwater.h:75
LAYERPAR_S::width
double width[MAXLYR]
Definition: soilwater.h:71
LAYERPAR_S::wfps
double wfps[MAXLYR]
Definition: soilwater.h:92
PARTDENS
#define PARTDENS
Definition: diffusiv.c:65
LAYERPAR_S::swc
double swc[MAXLYR]
Definition: soilwater.h:89
double wfunc_pulse ( double *  ppt,
double *  snow
)
