denitrify.c File Reference
#include <R.h>
#include <math.h>
#include <Rmath.h>
#include <Rinternals.h>
#include "n2o_model.h"
#include "soilwater.h"

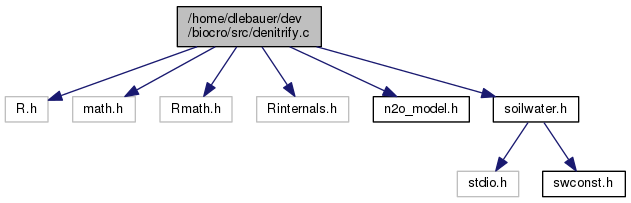

+ Include dependency graph for denitrify.c:

Go to the source code of this file.

Macros

#define M_PI   3.1415926536


Functions

void denitrify (double *newCO2, double *newNO3, double nitrate[MAXLYR], double wfluxout[MAXLYR], double *critflow, double frlechd[], double stream[], double *basef, double *stormf, double *inorglch, double *Dn2oflux, double *Dn2flux, double stdfieldc, double stdbulkd, double dN2lyr[], double dN2Olyr[], int *jday, SITEPAR_SPT sitepar, LAYERPAR_SPT layers)


Macro Definition Documentation

#define M_PI   3.1415926536

Function Documentation

void denitrify ( double *  newCO2,
double *  newNO3,
double  nitrate[MAXLYR],
double  wfluxout[MAXLYR],
double *  critflow,
double  frlechd[],
double  stream[],
double *  basef,
double *  stormf,
double *  inorglch,
double *  Dn2oflux,
double *  Dn2flux,
double  stdfieldc,
double  stdbulkd,
double  dN2lyr[],
double  dN2Olyr[],
int *  jday,
SITEPAR_SPT  sitepar,
LAYERPAR_SPT  layers
)
147  {
148  int debug;
149  int ilyr;
150  double a;
151  double fDno3;
152  double fDco2;
153  double fDwfps;
154  double Dtotflux;
155  double fRno3_co2;
156  double fRwfps;
157  double A[4];
158  double ntotflux[MAXLYR];
159  double n2oflux;
160  double grams_soil[MAXLYR];
161  double nitratePPM[MAXLYR];
162  double wfps_fc[MAXLYR];
163  double co2PPM[MAXLYR];
164  double co2_correction[MAXLYR];
165  double Rn2n2o;
166  double n2ofrac, n2frac;
167  double excess;
168  double min_nitrate;
169  double min_nitrate_end;
170  double fluxout;
171  double K;
172  double k[MAXLYR], ksum;
173  double k1, M;
174  double dD0_fc;
175  double x_inflection;
176  double WFPS_threshold;
177  double ug_per_gram;
178  double grams_per_ug;
179  double CM_per_METER;
180
181 /*
182  extern LAYERPAR_SPT layers;
183  extern SITEPAR_SPT sitepar;
184 */
185  /* Initializations */
186  debug = 0;
187  min_nitrate = 0.1;
188  min_nitrate_end = 0.05;
189  K = -0.1;
190  ug_per_gram = 1.0E6;
191  grams_per_ug = 1.0E-6;
192  CM_per_METER = 100.0;
193  for (ilyr=0; ilyr < MAXLYR; ilyr++) {
194  co2PPM[ilyr] = 0.0;
195  dN2lyr[ilyr] = 0.0;
196  dN2Olyr[ilyr] = 0.0;
197  }
198
199  *Dn2oflux = 0.0;
200  *Dn2flux = 0.0;
201
202  ksum = 0.0;
203  for (ilyr=0; ilyr < layers->numlyrs; ilyr++) {
204 /* k[ilyr] = exp(K*layers->dpthmn[ilyr]) - exp(K*layers->dpthmx[ilyr]); */
205  /* Use rooting density from soils.in file to weight CO2 by depth, */
206  /* cak - 04/07/04 */
207  k[ilyr] = max(layers->tcoeff[ilyr], 0.001);
208  ksum += k[ilyr];
209  ntotflux[ilyr] = 0.0;
210  }
211
212  for (ilyr=0; ilyr < layers->numlyrs; ilyr++) {
213  k[ilyr] /= ksum;
214  nitrate[ilyr] += k[ilyr] * (*newNO3);
215  }
216  /* newNO3 used up after being distributed thru the soil profile */
217  *newNO3 = 0;
218
219  wfps(layers);
220
221  /* Mineral leaching */
222
223  leachdly(wfluxout, layers->numlyrs, nitrate, *critflow, frlechd, stream,
224  *basef, *stormf, inorglch);
225
226  for (ilyr=0; ilyr < layers->numlyrs; ilyr++) {
227
228  /* Denitrification occurs over all layers */
229  /* Convert nitrate (gN/m2) to nitratePPM (ppm N) */
230  grams_soil[ilyr] = layers->bulkd[ilyr] * layers->width[ilyr] *
231  CM_per_METER * CM_per_METER;
232  nitratePPM[ilyr] = nitrate[ilyr] / grams_soil[ilyr] * ug_per_gram;
233  if (nitratePPM[ilyr] < min_nitrate) {
234  if (debug) {
235  fprintf(stdout, "CANNOT DENITRIFY layer %1d, nitrate[%1d] = %f\n",
236  ilyr, ilyr, nitrate[ilyr]);
237  }
238  continue;
239  }
240  co2PPM[ilyr] = k[ilyr] * (*newCO2) / grams_soil[ilyr] *
241  ug_per_gram;
242 /* wfps_fc[ilyr] = stdfieldc / (1.0 - stdbulkd/PARTDENS); */
243  wfps_fc[ilyr] = layers->fieldc[ilyr] /
244  (1.0 - layers->bulkd[ilyr]/PARTDENS);
245 /* dD0_fc = diffusiv(&stdfieldc, &stdbulkd, &wfps_fc[ilyr]); */
246  /* dD0 calc changed 6/20/00 -mdh */
247  dD0_fc = diffusiv(&layers->fieldc[ilyr], &layers->bulkd[ilyr],
248  &wfps_fc[ilyr]);
249  WFPS_threshold = (dD0_fc >= 0.15) ? 0.80 : (dD0_fc*250 + 43)/100;
250  if (layers->wfps[ilyr] <= WFPS_threshold) {
251  co2_correction[ilyr] = co2PPM[ilyr];
252  } else {
253  a = (dD0_fc >= 0.15) ? 0.004 : (-0.1 * dD0_fc + 0.019);
254  co2_correction[ilyr] = co2PPM[ilyr] * (1.0 + a *
255  (layers->wfps[ilyr] - WFPS_threshold)*100);
256  }
257
258  /* Compute the Nitrate effect on Denitrification */
259  /* Changed NO3 effect on denitrification based on */
260  /* paper "General model for N2O and N2 gas emissions from */
261  /* soils due to denitrification", Del Grosso et. al, GBC, */
262  /* 12/00, -mdh 5/16/00 */
263
264 /* fDno3 = 1.15 * pow(nitratePPM[ilyr], 0.57);*/
265  A[0] = 9.23;
266  A[1] = 1.556;
267  A[2] = 76.91;
268  A[3] = 0.00222;
269
270  fDno3 = f_arctangent(nitratePPM[ilyr], A);
271  fDno3 = max(0.0, fDno3);
272
273  /* Compute the Carbon Dioxide effect on Denitrification */
274  /* (fDco2, ppm N) */
275  /* Changed CO2 effect on denitrification based on */
276  /* paper "General model for N2O and N2 gas emissions from */
277  /* soils due to denitrification", Del Grosso et. al, GBC, */
278  /* 12/00, -mdh 5/16/00 */
279
280 /* fDco2 = 0.1 * pow(co2PPM[ilyr], 1.3);*/
281  /* The CO2 effect calculation should take into account the */
282  /* corrected CO2 concentration, cak - 07/31/02 */
283 /* fDco2 = max(0.0, ((0.1 * pow(co2PPM[ilyr], 1.3)) - min_nitrate)); */
284  fDco2 = max(0.0,
285  ((0.1 * pow(co2_correction[ilyr], 1.3)) - min_nitrate));
286
287  /* Compute wfps effect on denitrification, (fDwfps, 0-1) */
288  /* Changed wfps effect on denitrification based on */
289  /* paper "General model for N2O and N2 gas emissions from */
290  /* soils due to denitrification", Del Grosso et. al, GBC, */
291  /* 12/00, -mdh 5/16/00 */
292
293  M = min(0.113, dD0_fc) * (-1.25) + 0.145;
294  /* The x_inflection calculation should take into account the */
295  /* corrected CO2 concentration, cak - 07/31/02 */
296 /* x_inflection = (9.0 - M); */
297  x_inflection = (9.0 - M * co2_correction[ilyr]);
298
299  /* Changed fDwfps calculation - cak - 9/18/00 */
300 /* fDwfps = 0.5 +
301  (atan(0.6*M_PI*(0.1*layers->wfps[ilyr]*100-x_inflection))) /
302  M_PI; */
303  fDwfps = (0.45 +
304  (atan(0.6*M_PI*(10.0*layers->wfps[ilyr]-
305  x_inflection))) / M_PI);
306  fDwfps = max(0.0, fDwfps);
307
308  if (debug) {
309  fprintf(stdout, "\n%6s %6s %6s\n","fDwfps","fDno3","fDco2");
310  fprintf(stdout, "%6.4lf %6.4lf %6.4lf\n", fDwfps,fDno3,fDco2);
311  }
312
313  /* Compute the N fluxes (N2 + N2O) for the current layer, ppm N */
314  /* If desired, do not include CO2 effect on denitrification between */
315  /* given Julian days, cak - 02/19/04 */
316  if (*jday >= sitepar->jdayStart && *jday <= sitepar->jdayEnd) {
317  Dtotflux = fDno3;
318  } else {
319  Dtotflux = (fDno3 < fDco2) ? fDno3 : fDco2;
320  }
321
322  /* Minimum value for potential denitrification in top 2 soil layers */
323  /* ppm N, 9/18/00 -cindyk */
324  if (ilyr < 2) {
325  Dtotflux = max(0.066, Dtotflux);
326  }
327  /* Account for water limitation */
328  Dtotflux *= fDwfps;
329  if (debug) {
330  fprintf(stdout, "Dtotflux = %8.4lf\n", Dtotflux);
331  }
332
333  /* Nitrate effect on the ratio of N2 to N2O. */
334  /* Maximum N2/N2O ratio soil respiration function */
335  /* Changed the NO3 and CO2 effect on the N2/N2O ratio based on */
336  /* paper "General model for N2O and N2 gas emissions from */
337  /* soils due to denitrification", Del Grosso et. al, GBC, */
338  /* 12/00, -mdh 5/16/00 */
339  /* fRno3_co2 estimates the ratio as a function of electron */
340  /* donor to substrate -mdh 5/17/00 */
341
342  k1 = max(1.5, 38.4 - 350 * dD0_fc);
343  fRno3_co2 = max(0.16 * k1, k1 * exp(-0.8 * nitratePPM[ilyr]/co2PPM[ilyr]));
344
345  /* WFPS effect on the N2/N2O Ratio */
346  /* Changed wfps effect on the N2/N2O ratio based on */
347  /* paper "General model for N2O and N2 gas emissions from */
348  /* soils due to denitrification", Del Grosso et. al, GBC, */
349  /* 12/00, -mdh 5/16/00 */
350
351  fRwfps = max(0.1, 0.015 * layers->wfps[ilyr]*100 - 0.32);
352
353  /* Compute the N2:N2O Ratio */
354
355  Rn2n2o = fRno3_co2 * fRwfps;
356  if (Rn2n2o < 0.1) {
357  Rn2n2o = 0.1;
358  }
359
360  if (debug) {
361  fprintf(stdout, "\n%6s %8s %8s %9s %2s %3s\n","fRwfps",
362  "nitratePPM","co2PPM","fRno3_co2","k1","dD0");
363  fprintf(stdout, "%6.4lf %6.4lf %6.4lf %6.4lf %6.4lf %6.4lf\n",
364  fRwfps,nitratePPM[ilyr],co2PPM[ilyr],fRno3_co2,k1,dD0_fc);
365  fprintf(stdout, "Ratio N2:N2O = %12.10lf\n", Rn2n2o);
366  }
367
368  /* Compute N2 and N2O flux by layer (Denitrification) */
369  /* convert ppm N to gN/m^2 */
370
371  ntotflux[ilyr] = Dtotflux * grams_soil[ilyr] * grams_per_ug;
372  n2oflux = ntotflux[ilyr] / (Rn2n2o + 1.0);
373  *Dn2oflux += n2oflux;
374  dN2Olyr[ilyr] = n2oflux;
375  *Dn2flux += ntotflux[ilyr] - n2oflux;
376  dN2lyr[ilyr] = ntotflux[ilyr] - n2oflux;
377  if (debug) {
378  fprintf(stdout, "\n%3s %6s %6s %6s %6s\n", "lyr", "n2o", "n2",
379  "co2", "no3");
380  fprintf(stdout, "%3d %6.4lf %6.4lf %6.4lf\n", ilyr,
381  n2oflux, co2PPM[ilyr], nitratePPM[ilyr]);
382  }
383  } /* for ilyr */
384
385  if (debug) {
386  fprintf(stdout, "\nIn denitrify, Dn2oflux (gN/m2/day) = %12.10lf\n",
387  *Dn2oflux);
388  fprintf(stdout, "In denitrify, Dn2flux (gN/m2/day) = %12.10lf\n",
389  *Dn2flux);
390  }
391
392  if (*Dn2oflux < 1.0E-25) {
393  *Dn2oflux = 0.0;
394  }
395  if (*Dn2flux < 1.0E-25) {
396  *Dn2flux = 0.0;
397  }
398
399  if (debug) {
400  fprintf(stdout, "In denitrify(1), Dn2oflux = %12.10lf\n", *Dn2oflux);
401  fprintf(stdout, "In denitrify(1), Dn2flux = %12.10lf\n", *Dn2flux);
402  }
403
404  /* Reduce nitrate in soil by the amount of N2-N N2O-N that is lost */
405  /* Do not let nitrate in any layer go below min_nitrate */
406
407  if (*Dn2oflux + *Dn2flux > 1.0E-30) {
408  n2ofrac = *Dn2oflux/(*Dn2oflux + *Dn2flux);
409  n2frac = *Dn2flux/(*Dn2oflux + *Dn2flux);
410  excess = 0.0;
411
412  for (ilyr=0; ilyr < layers->numlyrs; ilyr++) {
413  if (nitratePPM[ilyr] < min_nitrate) {
414  /* No trace gas flux from this layer */
415  excess += ntotflux[ilyr];
416  if (debug) {
417  printf("First IF check in loop, excess = %12.10lf\n", excess);
418  }
419  } else if ((nitrate[ilyr] - ntotflux[ilyr]) >
420  (min_nitrate_end * grams_soil[ilyr] * grams_per_ug)) {
421  /* Remove N in calculated trace gas flux from the layer */
422  nitrate[ilyr] -= ntotflux[ilyr];
423  if (debug) {
424  printf("Second IF check in loop, nitrate[%1d] = %12.10lf", ilyr,
425  nitrate[ilyr]);
426  printf(" nitratePPM[%1d] = %12.10lf\n", ilyr, nitratePPM[ilyr]);
427  }
428  } else {
429  /* Reduce trace gas flux in layer so soil N won't fall below */
430  /* the minimum value */
431  fluxout = (nitratePPM[ilyr] - min_nitrate_end) *
432  grams_soil[ilyr] * grams_per_ug;
433  excess += (ntotflux[ilyr] - fluxout);
434  nitrate[ilyr] = min_nitrate_end * grams_soil[ilyr] * grams_per_ug;
435  if (debug) {
436  printf("Third IF check in loop, excess = %12.10lf\n",excess);
437  printf("nitrate[%1d] = %12.10lf", ilyr, nitrate[ilyr]);
438  printf(" nitratePPM[%1d] = %12.10lf\n", ilyr, nitratePPM[ilyr]);
439  }
440  }
441  } /* for ilyr */
442
443  *Dn2oflux -= n2ofrac * excess;
444  *Dn2flux -= n2frac * excess;
445
446  if (debug) {
447  printf(" n2ofrac = %12f\n", n2ofrac);
448  printf(" n2frac = %12f\n", n2frac);
449  fprintf(stdout, " n2o_excess = %12.10lf\n", n2ofrac * excess);
450  fprintf(stdout, " n2_excess = %12.10lf\n", n2frac * excess);
451  }
452  } else {
453  *Dn2oflux = 0.0;
454  *Dn2flux = 0.0;
455  }
456
457  if (debug) {
458  fprintf(stdout, "In denitrify(2), Dn2oflux = %12.10lf\n", *Dn2oflux);
459  fprintf(stdout, "In denitrify(2), Dn2flux = %12.10lf\n", *Dn2flux);
460  }
461  return;
462  }
f_arctangent
double f_arctangent(double x, double A[])
Definition: pi_funcs.c:71
LAYERPAR_S::fieldc
double fieldc[MAXLYR]
Definition: soilwater.h:76
leachdly
void leachdly(double wfluxout[], int numlyrs, double nitrate[], double critflow, double frlechd[], double stream[], double basef, double stormf, double *inorglch)
Definition: leachdly.c:58
SITEPAR_S::jdayStart
int jdayStart
Definition: soilwater.h:126
LAYERPAR_S::numlyrs
int numlyrs
Definition: soilwater.h:86
min
#define min(a, b)
Definition: diffusiv.c:66
LAYERPAR_S::bulkd
double bulkd[MAXLYR]
Definition: soilwater.h:75
wfps
void wfps(LAYERPAR_SPT layers)
Definition: wfps.c:50
LAYERPAR_S::width
double width[MAXLYR]
Definition: soilwater.h:71
max
#define max(a, b)
Definition: diffusiv.c:67
diffusiv
double diffusiv(double *A, double *bulkden, double *wfps)
Definition: diffusiv.c:69
LAYERPAR_S::tcoeff
double tcoeff[MAXLYR]
Definition: soilwater.h:79
LAYERPAR_S::wfps
double wfps[MAXLYR]
Definition: soilwater.h:92
PARTDENS
#define PARTDENS
Definition: diffusiv.c:65
M_PI
#define M_PI
Definition: denitrify.c:139
MAXLYR
#define MAXLYR
Definition: swconst.h:8
