n2o_model.h File Reference

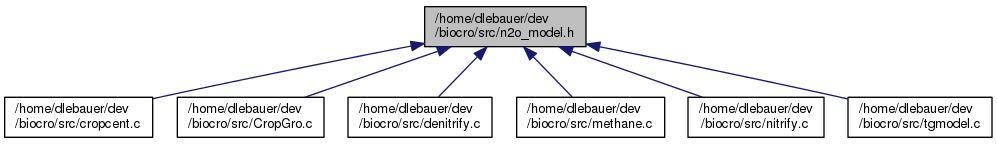

+ This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros

#define COARSE   1 /* texture type for sandy soil */

#define MEDIUM   2 /* texture type for medium (loamy) soil */

#define FINE   3 /* texture type for fine soil */

#define VERYFINE   4 /* texture type for volcanic soil */

#define MIN_NH4_CONC   0.05 /* minimum NH4 concentration (ppm) */

#define MIN_NO3_CONC   0.05 /* minimum NO3 concentration (ppm) */


Functions

double nox_pulse (double *ppt, double *snow)

void getsoilprop (double *asand, double *asilt, double *aclay, double *bulkden, double *fieldcap, int *texture, int *soilclassification)

double diffusiv (double *A, double *bulkden, double *wfps)

void leachdly (double tfluxout[], int numlyrs, double nitrate[], double critflow, double frlechd[], double stream[], double basef, double stormf, double *inorglch)

double f_allometric (double x, double A[])

double f_arctangent (double x, double A[])

double f_exponential (double x, double A[])

double f_gen_gompertz (double x, double A[])

double f_logistic (double x, double A[])

double f_gen_poisson_density (double x, double A[])


Macro Definition Documentation

#define COARSE   1 /* texture type for sandy soil */
#define FINE   3 /* texture type for fine soil */
#define MEDIUM   2 /* texture type for medium (loamy) soil */
#define MIN_NH4_CONC   0.05 /* minimum NH4 concentration (ppm) */
#define MIN_NO3_CONC   0.05 /* minimum NO3 concentration (ppm) */
#define VERYFINE   4 /* texture type for volcanic soil */

Function Documentation

double diffusiv ( double *  A,
double *  bulkden,
double *  wfps
)
70  {
71  double porosity;
72  double theta_A, theta_P, theta_V, my_theta_V;
73  double tp1, tp2, tp3, tp4, tp5, tp6, tp7, tp8;
74  double vfrac;
75  double s_wat, sw_p;
76  double pfc;
77  double dDO;
78  int debug;
79
80  /* Initialization */
81  debug = 0;
82
83  porosity = 1.0 - (*bulkden)/PARTDENS;
84  if ((porosity - (*A)) < 0.0) {
85  printf("ERROR: Mis-match between bulk density and field capacity\n");
86  printf("value in soils.in file. Ending simulation!\n");
87  exit(1);
88  }
89
90  pfc = (*wfps)*100 /((*A)/porosity);
91
92  if (pfc >= 100.0) {
93  vfrac = ((*wfps)*porosity - *A) / (porosity - (*A));
94  } else {
95  vfrac = 0.0;
96  }
97
98  if (pfc < 100.0) {
99  theta_V = (pfc/100.0)*(*A);
100  } else {
101  theta_V = (*A) + (min(vfrac,1.0) * (porosity - (*A)));
102  }
103
104  my_theta_V = *wfps * (1.0 - *bulkden/PARTDENS);
105
106  theta_P = (theta_V < (*A)) ? 0.0 : theta_V - (*A);
107  theta_A = (theta_V > (*A)) ? (*A) : theta_V;
108
109  if (debug) {
110  printf("In SUB, vfrac = %f\n", vfrac);
111  printf("In SUB, porosity - A = %f\n", (porosity - (*A)));
112  printf("In SUB, (*A) = %f\n", (*A));
113  printf("In SUB, (*wfps) = %f\n", (*wfps));
114  printf("In SUB, pfc = %f\n", pfc);
115  printf("In SUB, porosity = %f\n", porosity);
116  printf("In SUB, theta_V = %f\n", theta_V);
117  printf("In SUB, my_theta_V = %f\n", my_theta_V);
118  printf("In SUB, theta_P = %f\n", theta_P);
119  printf("In SUB, theta_A = %f\n", theta_A);
120  }
121
122  s_wat = min(1.0, theta_V/(*A));
123  sw_p = min(1.0, theta_P/(porosity-(*A)));
124
125  tp1 = pow((1.0 - s_wat), 2.0);
126  tp2 = ((*A) - theta_A) / ((*A) + (1.0 - porosity));
127  tp3 = pow(tp2,(0.5*tp2 + 1.16));
128  tp4 = (1.0 - pow(((porosity-(*A))),
129  (0.5*((porosity-(*A))) + 1.16)));
130  tp5 = (porosity-(*A))-theta_P;
131  if (tp5 > 0.0) {
132  tp6 = pow(tp5, (0.5*tp5 + 1.16));
133  } else {
134  tp6 = 0.0;
135  }
136  tp7 = pow((1.0-sw_p), 2.0);
137  tp8 = max(0.0, (tp1*tp3*tp4*(tp5-tp6)) /
138  (1.0E-6 + (tp1*tp3*tp4) + tp5 - tp6) * 1.0E7);
139
140  if (debug) printf("From SUB: %f %f %f %f %f %f %f %f\n",
141  tp1, tp2, tp3, tp4, tp5, tp6, tp7, tp8);
142  dDO = max(0.0, (tp8/1.0E7 + tp7*tp6));
143  if (debug) {
144  printf("In SUB, dDO = %f\n", dDO);
145  }
146
147 /* dDO /= 0.20;
148  dDO = min(dDO, 1.0); */
149
150  return(dDO);
151  }
min
#define min(a, b)
Definition: diffusiv.c:66
tp5
int tp5
Definition: AuxBioCro.h:19
wfps
void wfps(LAYERPAR_SPT layers)
Definition: wfps.c:50
max
#define max(a, b)
Definition: diffusiv.c:67
tp3
int tp3
Definition: AuxBioCro.h:19
PARTDENS
#define PARTDENS
Definition: diffusiv.c:65
tp4
int tp4
Definition: AuxBioCro.h:19
double f_allometric ( double  x,
double  A[]
)
56  {
57  return x <= 0.0 ? 0.0 : A[0] * pow(x, A[1]);
58  }
double f_arctangent ( double  x,
double  A[]
)
72  {
73  return(A[1] + (A[2] / PI) *
74  atan(PI * A[3] * (x - A[0])));
75  }
PI
#define PI
Definition: pi_funcs.c:43
double f_exponential ( double  x,
double  A[]
)
89  {
90  return(A[0] * exp((A[1] * x)));
91  }
double f_gen_gompertz ( double  x,
double  A[]
)
109  {
110  double tmp1, tmp2; /* temp values */
111
112  if (A[1] <= 0.0) {
113  return 0.0;
114  }
115
116  tmp1 = pow(A[1], (A[3] * x));
117  tmp2 = pow(A[1], A[2] / tmp1);
118
119  return(A[0] / tmp2);
120  }
tmp1
double tmp1[3]
Definition: AuxBioCro.h:21
double f_gen_poisson_density ( double  x,
double  A[]
)
152  {
153  double tmp1, tmp2, tmp3;
154
155  if (A[1] == A[0]) {
156  return(0.0);
157  }
158
159  tmp1 = ((A[1] - x) / (A[1] - A[0]));
160  if (tmp1 <= 0.0) {
161  return 0.0;
162  }
163
164  tmp2 = 1.0 - pow(tmp1, A[3]);
165  tmp3 = pow(tmp1, A[2]);
166  return (exp(A[2] * tmp2 / A[3]) * tmp3);
167  }
tmp1
double tmp1[3]
Definition: AuxBioCro.h:21
tmp3
double tmp3[MAXLAY]
Definition: AuxBioCro.h:28
double f_logistic ( double  x,
double  A[]
)
136  {
137  return(A[0] / (1.0 + A[1] / exp((A[2] * x))));
138  }
void getsoilprop ( double *  asand,
double *  asilt,
double *  aclay,
double *  bulkden,
double *  fieldcap,
int *  texture,
int *  soilclassification
)
75  {
76  static double satcond[NCLASS] = {0.0, 0.000176, 0.0001563,
77  0.00003467, 0.0000072, 0.00000695,
78  0.0000063, 0.0000017, 0.00000245,
79  0.000002167, 0.000001033,
80  0.000001283, 0.0000080, 0.0000080};
81  static double bulk_density[NCLASS] = {0.0, 1.55, 1.50, 1.43, 1.36,
82  1.39, 1.35, 1.24, 1.30, 1.28,
83  1.19, 1.15, 1.40, 0.75};
84  static double field_capacity[NCLASS] = {0.0, 0.14, 0.18, 0.22, 0.32,
85  0.29, 0.28, 0.40, 0.36,
86  0.36, 0.46, 0.45, 0.33,
87  0.70};
88  int soil_indx;
89  double ksat;
90  double sand, silt, clay;
91
92  sand = *asand * 100;
93  silt = *asilt * 100;
94  clay = *aclay * 100;
95
96  if ((sand > 100 || sand < 0) || (silt > 100 || silt < 0) ||
97  (clay > 100 || clay < 0)) {
98  fprintf(stderr, "Invalid texture in getsoilprop: sand = %f,", sand);
99  fprintf(stderr, " silt = %f, clay = %f\n", silt, clay);
100  exit(1);
101  }
102
103  if (*texture == VERYFINE) {
104  /* volcanic */
105  soil_indx = 13;
106  } else if ((sand >= 85) && ((-2.0/3.0)*silt - clay + 10 >= 0)) {
107  /* sand */
108  soil_indx = 1;
109  } else if (((-2.0/3.0)*silt - clay + 10 <= 0) &&
110  (-0.5*silt - clay + 15 >= 0)) {
111  /* loamy sand */
112  soil_indx = 2;
113  } else if (((-0.5*silt-clay+15 <= 0) && (clay <= 20) && (sand >= 52)) ||
114  ((sand <= 52) && (silt <= 50) && (clay <= 7))) {
115  /* sandy loam */
116  soil_indx = 3;
117  } else if ((sand <= 50) && (silt >= 50) && (clay <= 27)) {
118  if ((sand <= 20) && (clay <= 10)) {
119  /* silt */
120  soil_indx = 12;
121  } else {
122  /* silt loam */
123  soil_indx = 4;
124  }
125  } else if ((sand >= 23 && sand <= 52) && (silt >= 28 && silt <= 50) &&
126  (clay >= 7 && clay <= 27)) {
127  /* loam */
128  soil_indx = 5;
129  } else if ((sand >= 45 && sand <= 80) && (silt <= 28) &&
130  (clay >= 20 && clay <= 35)) {
131  /* sandy clay loam */
132  soil_indx = 6;
133  } else if ((sand <= 20) && (clay >= 27 && clay <= 40)) {
134  /* silty clay loam */
135  soil_indx = 7;
136  } else if ((sand >= 20 && sand <= 45) && (clay >= 27 && clay <= 40)) {
137  /* clay loam */
138  soil_indx = 8;
139  } else if ((sand >= 45 && sand <= 65) && (silt <= 20) &&
140  (clay >= 35 && clay <= 55)) {
141  /* sandy clay */
142  soil_indx = 9;
143  } else if ((sand <= 20) && (silt >= 40 && silt <= 60) &&
144  (clay >= 40 && clay <= 60)) {
145  /* silty clay */
146  soil_indx = 10;
147  } else if ((sand <= 45) && (silt <= 40) && (clay >= 40)) {
148  /* clay */
149  soil_indx = 11;
150  } else {
151  fprintf(stderr, "Unknown texture type: sand = %f, silt = %f,", sand,
152  silt);
153  fprintf(stderr, " clay = %f\n", clay);
154  exit(1);
155  }
156
157  *bulkden = bulk_density[soil_indx];
158  *fieldcap = field_capacity[soil_indx];
159  ksat = satcond[soil_indx]*100.0; /* Convert m/sec to cm/sec */
160  *soilclassification=soil_indx-1;
161
162 /* printf("Soil classification = %1d\n", soil_indx);
163  printf("standard_bulkden = %10.6lf\n", *bulkden);
164  printf("standard_fieldcap = %10.6lf\n", *fieldcap);
165  printf("standard_ksat = %10.6lf\n", ksat); */
166
167  return;
168  }
VERYFINE
#define VERYFINE
Definition: getsoilprop.c:71
NCLASS
#define NCLASS
Definition: getsoilprop.c:67
void leachdly ( double  tfluxout[],
int  numlyrs,
double  nitrate[],
double  critflow,
double  frlechd[],
double  stream[],
double  basef,
double  stormf,
double *  inorglch
)
61  {
62
63  int lyr, nxt;
64  int iel = 0; /* nitrogen */
65  double amtlea[MAXLYR];
66  double strm_N;
67  double base_N;
68  double linten;
69
70  strm_N = 0.0;
71  base_N = 0.0;
72  *inorglch = 0.0;
73
74  for(lyr=0; lyr < numlyrs; lyr++) {
75  amtlea[lyr] = 0.0;
76  nxt = lyr + 1;
77
78  /* wfluxout > 0. indicates a saturated water flow out of layer lyr */
79
80  if ((wfluxout[lyr] > 0.0) && (nitrate[lyr] > 1.0E-10)) {
81  linten = min(1.0 - (critflow - wfluxout[lyr]) / critflow, 1.0);
82  linten = max(linten, 0.0);
83  amtlea[lyr] = (frlechd[iel]) * nitrate[lyr] * linten;
84
85  /* If you are at the bottom layer, compute storm flow. */
86  if (lyr == numlyrs-1) {
87  strm_N = amtlea[lyr] * stormf;
88  }
89  if (amtlea[lyr] < nitrate[lyr]) {
90  nitrate[lyr] = nitrate[lyr] - amtlea[lyr];
91  nitrate[nxt] = nitrate[nxt] + (amtlea[lyr] - strm_N);
92  }
93  }
94  }
95
96  /* Compute base flow and mineral stream flows. */
97  /* Check for underflow. -mdh */
98
99  if (nitrate[nxt] >= 1.0E-10) {
100  base_N = nitrate[nxt] * basef;
101  nitrate[nxt] = nitrate[nxt] - base_N;
102  }
103
104  /* Note: stream flow indices differ from mineral element */
105  /* indices by 1 (eg stream(2) is stream flow for nitrogen). */
106
107  stream[iel+1] = stream[iel+1] + (strm_N + base_N);
108  *inorglch = strm_N + base_N;
109
110  return;
111  }
min
#define min(a, b)
Definition: diffusiv.c:66
max
#define max(a, b)
Definition: diffusiv.c:67
MAXLYR
#define MAXLYR
Definition: swconst.h:8
double nox_pulse ( double *  ppt,
double *  snow
)
64  {
65  static double cumppt[PPTDAYS] = {0.0,0.0,0.0,0.0,0.0,0.0,0.0,0.0,
66  0.0,0.0,0.0,0.0,0.0,0.0,0.0};
67  static double pl[PLDAYS] = {1.0,1.0};
68  static double pm[PMDAYS] = {1.0,1.0,1.0,1.0,1.0,1.0};
69  static double ph[PHDAYS] = {1.0,1.0,1.0,1.0,1.0,1.0,1.0,1.0,1.0,
70  1.0,1.0,1.0,1.0};
71  static double mtplr[PHDAYS] = {1.0,1.0,1.0,1.0,1.0,1.0,1.0,1.0,
72  1.0,1.0,1.0,1.0,1.0};
73  static int npl=0, npm=0, nph=0, nppt=0, mptr=0;
74  static int pflag=0;
75  double sumppt;
76  double retval;
77  int ii, indx;
78
79  sumppt = 0.0;
80  cumppt[nppt] = *ppt;
81  for (ii=1; ii<PPTDAYS; ii++) {
82  indx = (nppt+ii) % PPTDAYS;
83  sumppt += cumppt[indx];
84  }
85
86  /* Comparisons with data showed NO emissions to be about twice of */
87  /* what they should be, reduce the pulse multipliers, cak - 09/24/03 */
88  if (*snow) {
89  mtplr[mptr] = 0.0;
90  } else if ((sumppt <= 1.0) && (*ppt > 0.1)) {
91  /* initiate new pulse */
92  if (*ppt < 0.5) {
93  for (ii=0; ii<PLDAYS; ii++) {
94  indx = (npl+ii) % PLDAYS;
95  pl[indx] = 2.8 * exp(-0.805 * (ii+1));
96  }
97  pflag = 2;
98  } else if ((*ppt >= 0.5) && (*ppt <= 1.5)) {
99  for (ii=0; ii<PMDAYS; ii++) {
100  indx = (npm+ii) % PMDAYS;
101  pm[indx] = 3.67 * exp(-0.384 * (ii+1));
102  }
103  pflag = 6;
104  } else {
105  for (ii=0; ii<PHDAYS; ii++) {
106  indx = (nph+ii) % PHDAYS;
107  ph[indx] = 4.615 * exp(-0.208 * (ii+1));
108  }
109  pflag = 13;
110  }
111
112  mtplr[mptr] = max3(pl[npl],pm[npm],ph[nph]);
113  pflag--;
114  } else if (pflag > 0) {
115  mtplr[mptr] = max3(pl[npl],pm[npm],ph[nph]);
116  pflag--;
117  } else {
118  mtplr[mptr] = 1.0;
119  }
120
121  retval = mtplr[mptr];
122  pl[npl] = 1.0;
123  pm[npm] = 1.0;
124  ph[nph] = 1.0;
125
126  /* increment pointers in circular arrays */
127  npl = (npl+1) % PLDAYS;
128  npm = (npm+1) % PMDAYS;
129  nph = (nph+1) % PHDAYS;
130  nppt = (nppt+1) % PPTDAYS;
131  mptr = (mptr+1) % PHDAYS;
132
133  return(retval);
134  }
PHDAYS
#define PHDAYS
Definition: nox_pulse.c:59
PMDAYS
#define PMDAYS
Definition: nox_pulse.c:58
PPTDAYS
#define PPTDAYS
Definition: nox_pulse.c:56
PLDAYS
#define PLDAYS
Definition: nox_pulse.c:57
max3
double max3(double a, double b, double c)
Definition: nox_pulse.c:165
