nitrify.c File Reference

#include <R.h>
#include <math.h>
#include <Rmath.h>
#include <Rinternals.h>
#include "soilwater.h"
#include "n2o_model.h"

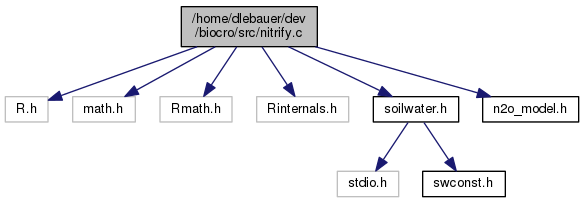

Include dependency graph for nitrify.c:

Go to the source code of this file.

Functions
void	nitrify (double *ammonium, double *nh4_2_no3, double *maxt, double *nreduce, SITEPAR_SPT sitepar, LAYERPAR_SPT layers, SOIL_SPT soil)

Function Documentation

void nitrify	(	double *	ammonium,
		double *	nh4_2_no3,
		double *	maxt,
		double *	nreduce,
		SITEPAR_SPT	sitepar,
		LAYERPAR_SPT	layers,
		SOIL_SPT	soil
	)

    {
      int debug = 0;
      int ilyr;
      double MaxRate = 0.15;
      double base_flux;
      double fNsoilt;
      double fNwfps;
      double fNnh4;
      double fNph;
      double A[4];    /* parameters to parton-innis functions */
      double grams_soil;
      double nh4_conc;
      double avgwfps;
      double min_ammonium = 0.03;
      double abiotic;
      double  rel_wc[4], avg_rel_wc, avgfc, avgstemp;
      double absoluteMaxRate;

/*
      extern LAYERPAR_SPT layers;
      extern SITEPAR_SPT sitepar;
      extern SOIL_SPT soil;
*/

      *nh4_2_no3 = 0.0;

      if (*ammonium < min_ammonium) {
        if (debug) {
          fprintf(stdout, "CANNOT NITRIFY, ammonium too small\n");
        }
        goto RET;
      }

      /* Convert ammonium (g/m2) to nh4_conc (ppm) */
      /* Assume all ammonium occurs in the top 15 cm */
/* NOTE:  This should be changed so that nitrification occurs as a continuous
          function by depth rather than assuming that the top 3 soil layers
          will sum to 15 cm */

      grams_soil = (layers->bulkd[0]*layers->width[0] +
                    layers->bulkd[1]*layers->width[1] +
                    layers->bulkd[2]*layers->width[2])*100*100;

      nh4_conc = *ammonium/grams_soil*1.0E6;

      if (debug > 1) {
        fprintf(stdout, "ammonium = %10.4lf\n", *ammonium);
        fprintf(stdout, "nh4_conc = %10.4lf\n", nh4_conc);
      }

      /* Compute the effect of soil water on Nitrification (0-1). */
      /* Use relative water content for this calculation when the */
      /* soil is drier than field capacity.  When the soil is wetter */
      /* field capacity use water filled pore space.  cak - 06/16/04 */

      /* Compute relative water content in the 2nd and 3rd soil layers, */
      /* cak - 08/19/04 */
      for (ilyr = 1; ilyr < 3; ilyr ++) {
        rel_wc[ilyr] = (layers->swc[ilyr]/(layers->width[ilyr]) -
                        layers->swclimit[ilyr]) /
                        (layers->fieldc[ilyr] - layers->swclimit[ilyr]);
        if (rel_wc[ilyr] < 0.0) {
          rel_wc[ilyr] = 0.0;
        } else if (rel_wc[ilyr] > 1.0) {
          rel_wc[ilyr] = 1.0;
        }
        rel_wc[ilyr] *= layers->width[ilyr];
      }
      avg_rel_wc = (rel_wc[1] + rel_wc[2]) /
                   (layers->width[1] + layers->width[2]);

      if (avg_rel_wc < 1.0) {
        fNwfps = 1.0/(1.0 + 30.0 * exp(-9.0 * avg_rel_wc));
      } else {
        /* Compute average water filled pore space in 2nd and 3rd soil */
        /* layers, cak - 08/19/04 */
        wfps(layers);
        avgwfps = (layers->wfps[1]*layers->width[1] +
                   layers->wfps[2]*layers->width[2]) /
                  (layers->width[1] + layers->width[2]);
        if (debug > 1) {
          fprintf(stdout, "avgwfps = %6.2lf\n", avgwfps);
        }
        avgfc = (layers->fieldc[1]*layers->width[1] +
                 layers->fieldc[2]*layers->width[2]) /
                (layers->width[1] + layers->width[2]);
        /* Line function with two known points and a new X, calculate Y */
        /* slope = (y2 - y1) / (x2 - x1) */
        /* y = slope * (x - x2) + y2 */
        fNwfps = (0.0 - 1.0) / (1.0 - avgfc) * (avgwfps - 1.0) + 0.0;
      }

      /* Compute the soil temperature effect on Nitrification */
      A[0] = 35.0;
      A[1] = -5.0;
      A[2] = 4.5;
      A[3] = 7.0;
      /* Rates of nitrification were too low at low soil temperatures, */
      /* shift the curve so that the nitrification rates are effectively */
      /* higher for cooler sites, this change does not affect sites with */
      /* hot temperatures, cak - 11/25/03 */
      avgstemp = (soil->soiltavg[1] * layers->width[1] +
                  soil->soiltavg[2] * layers->width[2]) /
                 (layers->width[1] + layers->width[2]);
      if (*maxt >= 35.0) {
        A[0] = *maxt;
        fNsoilt = f_gen_poisson_density(avgstemp,A);
      } else {
        fNsoilt = f_gen_poisson_density(avgstemp+(A[0]-*maxt),A);
      }

      /* Compute pH effect on nitrification */
      A[0] = 5.0;
      A[1] = 0.56;
      A[2] = 1.0;
      A[3] = 0.45;
      fNph = f_arctangent(layers->pH[1], A);

      /* Compute the Ammonium effect on Nitrification */
      A[0] = 1.0;
      A[1] = -0.0105;
      A[2] = 0.0;
      A[3] = 0.0;
      fNnh4 = 1.0 - f_exponential(nh4_conc, A);

      /* Compute amount of ammonium that goes to nitrate during */
      /* nitrification */
      if (debug > 1) {
        fprintf(stdout, "%6s  %6s  %6s  %6s\n","fNwfps","fNsoilt", "fNph",
                "fNnh4");
        fprintf(stdout, "%6.4lf  %6.4lf  %6.4lf  %6.4lf\n", fNwfps, fNsoilt, fNph,
                fNnh4);
      }
      /* The base_flux is equivalent to 0.1 gN/ha/day */
      base_flux = 0.1/10000.0;
      abiotic = max(fNwfps * fNsoilt, sitepar->Ncoeff);
      absoluteMaxRate = min(0.4, *ammonium * MaxRate);
      *nh4_2_no3 = absoluteMaxRate * fNph * abiotic * *nreduce +
                   base_flux;

      if ((*ammonium - *nh4_2_no3) > min_ammonium) {
        *ammonium -= *nh4_2_no3;
      } else {
        *nh4_2_no3 = min(*nh4_2_no3, *ammonium - min_ammonium);
        *ammonium = min_ammonium;
      }

RET:  return;
    }
