#include <R.h>
#include <math.h>
#include <Rmath.h>
#include <Rinternals.h>
#include "c4photo.h"

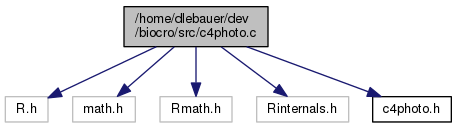

Include dependency graph for c4photo.c:

Functions
SEXP	c4photo (SEXP Qp, SEXP Tl, SEXP RH, SEXP VMAX, SEXP ALPHA, SEXP KPAR, SEXP THETA, SEXP BETA, SEXP RD, SEXP CA, SEXP B0, SEXP B1, SEXP STOMWS, SEXP WS, SEXP UPPERTEMP, SEXP LOWERTEMP)

double	ballBerry (double Amu, double Cappm, double Temp, double RelH, double beta0, double beta1)

double	fnpsvp (double Tkelvin)

struct c4_str	c4photoC (double Qp, double Tl, double RH, double vmax, double alpha, double kparm, double theta, double beta, double Rd, double bb0, double bb1, double StomaWS, double Ca, int ws, double upperT, double lowerT)

SEXP	McMCc4photo (SEXP ASSIM, SEXP QP, SEXP TEMP, SEXP RH, SEXP NITER, SEXP iVCMAX, SEXP iALPHA, SEXP iKPARM, SEXP iTHETA, SEXP iBETA, SEXP iRD, SEXP CATM, SEXP B0, SEXP B1, SEXP STOMWS, SEXP SCALE, SEXP SD1, SEXP SD2, SEXP WS, SEXP PRIOR, SEXP UPPERTEMP, SEXP LOWERTEMP)

double	RSS_C4photo (double oAssim[nObs], double oQp[nObs], double oTemp[nObs], double oRH[nObs], double vmax, double alpha, double kparm, double theta, double beta, double Rd, double Catm, double b0, double b1, double StomWS, int ws, double upperT, double lowerT)

Function Documentation

double ballBerry	(	double	Amu,
		double	Cappm,
		double	Temp,
		double	RelH,
		double	beta0,
		double	beta1
	)

 {

         const double gbw = 1.2; /* According to Collatz et al. (1992) pg. 526*/
         const double ptotPa = 101325; /* Atmospheric pressure */

         double pwaPa, leafTk, Camf, assimn;
         double wa, pwi, wi, gswmol, Cs, acs;
         double aaa, bbb, ccc, ddd;
         double gsmol;
         double hs;

         leafTk = Temp + 273.15;
         pwi = fnpsvp(leafTk);
         pwaPa = RelH * pwi;
         Camf = Cappm * 1e-6;
         assimn = Amu * 1e-6;

         /* Calculate mole fraction (mixing ratio) of water vapor in */
         /* atmosphere from partial pressure of water in the atmosphere and*/
         /* the total air pressure */
         wa  = pwaPa / ptotPa;
         /* Get saturation vapor pressure for water in the leaf based on */
         /* current idea of the leaf temperature in Kelvin*/
         /* Already calculated above */
         /* Calculate mole fraction of water vapor in leaf interior */
         wi  = pwi / ptotPa;

         if(assimn < 0.0){
                 /* Set stomatal conductance to the minimum value, beta0*/
                 gswmol = beta0 ;
                 /* Calculate leaf surface relative humidity, hs, (as fraction)*/
                 /* for when C assimilation rate is <= 0*/
                 /* hs = (beta0 + (wa/wi)*gbw)/(beta0 + gbw); ! unused here??*/
         }
         else{
                 /* leaf surface CO2, mole fraction */
                 Cs  = Camf - (1.4/gbw)*assimn;
                 if(Cs < 0.0)
                         Cs = 1;
                 /* Constrain the ratio assimn/cs to be > 1.e-6*/
                 acs = assimn/Cs;

                 if(acs < 1e-6)  acs = 1e-6;

                 /* Calculate leaf surface relative humidity, hs, from quadratic */
                 /* equation: aaa*hs^2 + bbb*hs + ccc = 0 */
                 /*  aaa= beta1 * assimn / cs */
                 aaa = beta1 * acs;
                 /*      bbb= beta0 + gbw - (beta1 * assimn / cs)*/
                 bbb = beta0 + gbw - (beta1 * acs);
                 ccc = -(wa / wi) * gbw - beta0;

                 /* Solve the quadratic equation for leaf surface relative humidity */
                 /* (as fraction) */
                 ddd = bbb * bbb - 4*aaa*ccc;

                 hs  = (-bbb + sqrt(ddd)) / (2* aaa);

                 /* Ball-Berry equation (Collatz'91, eqn 1) */
                 gswmol = beta1 * hs * acs + beta0;
         }
         gsmol = gswmol * 1000; /* converting to mmol */

         if(gsmol <= 0) gsmol = 1e-5;

         return(gsmol);
 }

SEXP c4photo	(	SEXP	Qp,
		SEXP	Tl,
		SEXP	RH,
		SEXP	VMAX,
		SEXP	ALPHA,
		SEXP	KPAR,
		SEXP	THETA,
		SEXP	BETA,
		SEXP	RD,
		SEXP	CA,
		SEXP	B0,
		SEXP	B1,
		SEXP	STOMWS,
		SEXP	WS,
		SEXP	UPPERTEMP,
		SEXP	LOWERTEMP
	)

 {
         struct c4_str tmp;

         double Bet0,Bet1;

         double vmax, alpha, K, Rd, StomWS;/*\ref{parm:Vmax}\ref{parm:Rd}*/
         double theta, beta;
         double upperT, lowerT;

         vmax = REAL(VMAX)[0];/*\ref{eqn:Vmax}*/
         alpha = REAL(ALPHA)[0];
         theta = REAL(THETA)[0];
         beta = REAL(BETA)[0];
         K = REAL(KPAR)[0];
         Bet0 = REAL(B0)[0];
         Bet1 = REAL(B1)[0];
         Rd = REAL(RD)[0];/*\ref{eqn:Rd}*/
         StomWS = REAL(STOMWS)[0];
         upperT=REAL(UPPERTEMP)[0];
         lowerT=REAL(LOWERTEMP)[0];

         int nq , nt, nr, i;

         SEXP lists, names;
         SEXP GsV;
         SEXP ASSV;
   SEXP GASSV;
         SEXP CiV;


         nq = length(Qp);nt = length(Tl);nr = length(RH);

         PROTECT(lists = allocVector(VECSXP,4));
         PROTECT(names = allocVector(STRSXP,4));

         PROTECT(GsV = allocVector(REALSXP,nq));
         PROTECT(ASSV = allocVector(REALSXP,nq));
   PROTECT(GASSV = allocVector(REALSXP,nq));
         PROTECT(CiV = allocVector(REALSXP,nq));

         double *pt_Qp = REAL(Qp);
         double *pt_Tl = REAL(Tl);
         double *pt_RH = REAL(RH);
         double *pt_CA = REAL(CA);

         int ws = INTEGER(WS)[0];

         double *pt_GSV = REAL(GsV);
         double *pt_ASSV = REAL(ASSV);
     double *pt_GASSV = REAL(GASSV);
         double *pt_CiV = REAL(CiV);
         /* Start of the loop */
         for(i = 0; i < nq ; i++)
         {

                 tmp = c4photoC(*(pt_Qp+i), *(pt_Tl+i), *(pt_RH+i),
                                vmax, alpha, K,theta, beta, Rd, /*\ref{parm:Vmax}\ref{parm:Rd}*/
                                Bet0, Bet1, StomWS,
                                *(pt_CA+i), ws,upperT,lowerT);

                 *(pt_GSV + i) = tmp.Gs;
                 *(pt_ASSV + i) = tmp.Assim;
     *(pt_GASSV + i) = tmp.GrossAssim;
                 *(pt_CiV + i) = tmp.Ci;
 /* Here it is using the REAL function every time */
 /* I should change this to a pointer too at some point */
         }

         SET_VECTOR_ELT(lists,0,GsV);
         SET_VECTOR_ELT(lists,1,ASSV);
         SET_VECTOR_ELT(lists,2,CiV);
   SET_VECTOR_ELT(lists,3,GASSV);
         SET_STRING_ELT(names,0,mkChar("Gs"));
         SET_STRING_ELT(names,1,mkChar("Assim"));
         SET_STRING_ELT(names,2,mkChar("Ci"));
   SET_STRING_ELT(names,3,mkChar("GrossAssim"));
         setAttrib(lists,R_NamesSymbol,names);
         UNPROTECT(6);
         return(lists);
 }

struct c4_str c4photoC	(	double	Qp,
		double	Tl,
		double	RH,
		double	vmax,
		double	alpha,
		double	kparm,
		double	theta,
		double	beta,
		double	Rd,
		double	bb0,
		double	bb1,
		double	StomaWS,
		double	Ca,
		int	ws,
		double	upperT,
		double	lowerT
	)

 {

         struct c4_str tmp;
         /* Constants */
         const double AP = 101325; /*Atmospheric pressure According to wikipedia (Pa)*/
         const double P = AP / 1e3; /* kPa */
         /*const double PS = 38;   Atmospheric pressure of CO2 */
         const double Q10 = 2;  /* Q10 increase in a reaction by 10 C temp */
         /* Defining biochemical variables */

         double Csurface ;
         double InterCellularCO2 ;
         double KQ10 , kT ;
         double Vtn , Vtd , VT ;
         double Rtn , Rtd , RT ;
         double b0 , b1 , b2 ;
         double M1 , M2 , M ;
         int iterCounter ;
         double Quada , Quadb , Quadc ;
         double a2 , Assim ,GrossAssim;
         double csurfaceppm ;
         double Gs , miC = 0.0 ;
         double diff, OldAssim = 0.0, Tol = 0.1;
         double kT_IC_P;

 /* When the method does not converge I do not use the iterative solution*/
         double Assim0 = 0.0;
         double Gs0 = 0.0;
         double IntCO2 = 0.0;
         /* partial pressure of CO2 at the leaf surface */

         /* if(StomaWS < 0.5) ws = 0; */

         Csurface = (Ca * 1e-6) * AP ;

         InterCellularCO2 = Csurface * 0.4; /* Initial guestimate */

         KQ10 =  pow(Q10,((Tl - 25.0) / 10.0));

         kT = kparm * KQ10;

         /* First chunk of code see Collatz (1992) */
 //      Vtn = vmax * pow(2,((Tl-25.0)/10.0));
 //      Vtd = ( 1 + exp(0.3 * (3.0-Tl)) ) * (1 + exp( 0.3*(Tl-37.5) ));
 //      VT  = Vtn / Vtd;

 //       This is the code implementing temperature limitations
          Vtn = vmax * pow(2,((Tl-25.0)/10.0));
          Vtd = ( 1 + exp(0.3 * (lowerT-Tl)) ) * (1 + exp( 0.3*(Tl-upperT) ));
          VT  = Vtn / Vtd;


         /* Second chunk of code see Collatz (1992) */
         Rtn = Rd * pow(2 , (Tl-25)/10 ) ;
         Rtd =  1 + exp( 1.3 * (Tl-55) ) ;
         RT = Rtn / Rtd ;

         /* Third chunk of code again see Collatz (1992) */
         b0 = VT * alpha  * Qp ;
         b1 = VT + alpha  * Qp ;
         b2 = theta ;

         /* Calculate the 2 roots */
         M1 = (b1 + sqrt(b1*b1 - (4 * b0 * b2)))/(2*b2) ;
         M2 = (b1 - sqrt(b1*b1 - (4 * b0 * b2)))/(2*b2) ;

         /* This piece of code selects the smalles root */
         if(M1 < M2)
                 M = M1;
         else
                 M = M2;

         /* Here the iterations will start */
         iterCounter = 0;

         while(iterCounter < 50)
         {

                 kT_IC_P = kT * (InterCellularCO2 / P*1000);
                 Quada = M * kT_IC_P;
                 Quadb = M + kT_IC_P;
                 Quadc = beta ;

                 a2 = (Quadb - sqrt(Quadb*Quadb - (4 * Quada * Quadc))) / (2 * Quadc);

                 Assim = a2 - RT;

                 if(ws == 0) Assim *= StomaWS;

                 /* milimole per meter square per second*/
                 csurfaceppm = Csurface * 10 ;

                 /* Need to create the Ball-Berry function */
                 Gs =  ballBerry(Assim,csurfaceppm, Tl, RH, bb0, bb1) ;
                 if(ws == 1) Gs *= StomaWS;

                 InterCellularCO2 = Csurface - (Assim * 1e-6 * 1.6 * AP) / (Gs * 0.001);

                 if(InterCellularCO2 < 0)
                         InterCellularCO2 = 1e-5;

                 if(iterCounter == 0){
                         Assim0 = Assim;
                         Gs0 = Gs;
                         IntCO2 = InterCellularCO2;
                 }

                 diff = OldAssim - Assim;
                 if(diff < 0) diff = -diff;
                 if(diff < Tol){
                         break;
                 }else{
                         OldAssim = Assim;
                 }

                 iterCounter++;

         }

 /* This would ignore the optimization due to the iterative procedure
  * when it does not converge. It is turned off now*/


         /* if(diff > Tol){ */
         /*      Assim = Assim0; */
         /*      Gs = Gs0; */
         /*      InterCellularCO2 = IntCO2; */
         /* } */

         /* if(diff > Tol){ */
         /*      Rprintf("iter %.i diff %.3f \n",iterCounter,diff); */
         /*      Rprintf("%.2f %.2f %.2f %.2f \n", Qp, Tl, RH, StomaWS); */
         /*      Rprintf("StomWS %.2f \n",StomaWS); */
         /*      Rprintf("InterCellular CO2 %.2f \n",InterCellularCO2); */
         /*      Rprintf("Assim %.2f \n",Assim); */
         /*      Rprintf("miC %.2f \n",(InterCellularCO2/AP)*1e6); */
         /*      Rprintf("vmax %.1f alpha %.3f \n", vmax, alpha); */
         /*      Rprintf("kparm %.3f theta %.3f \n", kparm, theta); */
         /*      Rprintf("beta %.3f Rd %.3f \n", beta, Rd); */
         /*      Rprintf("bb0 %.3f bb1 %.3f \n", bb0, bb1); */
         /*      Rprintf("Ca %.1f ws %i \n", Ca, ws); */
         /*      error("Did not converge \n"); */
         /* } */

         miC = (InterCellularCO2 / AP) * 1e6 ;

         if(Gs > 600)
           Gs = 600;
   GrossAssim=Assim+RT;
         tmp.Assim = Assim;
         tmp.Gs = Gs;
         tmp.Ci = miC;
   tmp.GrossAssim=GrossAssim;
         return(tmp);
 }

double fnpsvp ( double Tkelvin )

                              {
         /* water boiling point = 373.16 oK*/
 /* This is the Arden Buck Equation
 http://en.wikipedia.org/wiki/Arden_Buck_equation
  */
         double u, v;
         double tmp, esat;

         tmp = Tkelvin - 273.15;
         u = (18.678 - tmp/234.5)*tmp;
         v = 257.14 + tmp;
         esat = 6.1121 * exp(u/v);
         esat /= 10;

         return(esat);
 }

SEXP McMCc4photo	(	SEXP	ASSIM,
		SEXP	QP,
		SEXP	TEMP,
		SEXP	RH,
		SEXP	NITER,
		SEXP	iVCMAX,
		SEXP	iALPHA,
		SEXP	iKPARM,
		SEXP	iTHETA,
		SEXP	iBETA,
		SEXP	iRD,
		SEXP	CATM,
		SEXP	B0,
		SEXP	B1,
		SEXP	STOMWS,
		SEXP	SCALE,
		SEXP	SD1,
		SEXP	SD2,
		SEXP	WS,
		SEXP	PRIOR,
		SEXP	UPPERTEMP,
		SEXP	LOWERTEMP
	)

                                                                                                     {
         /* First manipulate R objects */
         extern int nObs;
         int niter;
         nObs = length(ASSIM);
         niter = INTEGER(NITER)[0];

         /* Second define the needed variables */
         double oldRSS = 1e6;
         int n1 = 0;

         int i;

         double scale = REAL(SCALE)[0];
         double sd1, sd2;

         double Rd = REAL(iRD)[0];/*\ref{eqn:Rd}*/
         double ikparm = REAL(iKPARM)[0];
         double ibeta = REAL(iBETA)[0];
         double itheta = REAL(iTHETA)[0];
         double Catm = REAL(CATM)[0];
         double b0 = REAL(B0)[0];
         double b1 = REAL(B1)[0];
         double StomWS = REAL(STOMWS)[0];
         int ws = INTEGER(WS)[0];

         double index;
         double rnum , rden;
         double lratio;
         double lmr;
         double U;

         double pmuVmax = REAL(PRIOR)[0];
         double psdVmax = REAL(PRIOR)[1];
         double pmuAlpha = REAL(PRIOR)[2];
         double psdAlpha = REAL(PRIOR)[3];

         double upperT =REAL(UPPERTEMP)[0];
         double lowerT =REAL(LOWERTEMP)[0];

         double RSS;
         double rnewVcmax, rnewAlpha;
         double oldAlpha, oldVcmax;

         SEXP lists;
         SEXP names;
         SEXP mat1;
         SEXP accept;


         PROTECT(lists = allocVector(VECSXP,2));
         PROTECT(names = allocVector(STRSXP,2));
         PROTECT(mat1 = allocMatrix(REALSXP,3,niter));
         PROTECT(accept = allocVector(REALSXP,1));

         GetRNGstate();

         oldVcmax = REAL(iVCMAX)[0];
         oldAlpha = REAL(iALPHA)[0];

         sd1 = REAL(SD1)[0] * scale;
         sd2 = REAL(SD2)[0] * scale;

         for(i = 0; i < niter; i++){

                 /* Replacing the rnormC4 function */
                 index = runif(0,1);
                 if(index < 0.5){
                         rnewVcmax = oldVcmax + rnorm(0,sd1);
                         rnewAlpha = oldAlpha;
                 }else{
                         rnewAlpha = oldAlpha +  rnorm(0, sd2);
                         rnewVcmax = oldVcmax;
                 }
                 /* This is the end of the random generation */

                 rnum = dnorm(rnewVcmax,pmuVmax,psdVmax,0)*dnorm(rnewAlpha,pmuAlpha,psdAlpha,0);
                 rden = dnorm(oldVcmax,pmuVmax,psdVmax,0)*dnorm(oldAlpha,pmuAlpha,psdAlpha,0);

                 lratio = log(rnum) - log(rden);

                 RSS = RSS_C4photo(REAL(ASSIM),REAL(QP),REAL(TEMP),REAL(RH),rnewVcmax,rnewAlpha, ikparm, itheta, ibeta, Rd, Catm, b0, b1, StomWS, ws,upperT,lowerT);

 /*       mr = (exp(-RSS) / exp(-oldRSS)) * ratio; */
 /* In the previous expression we can take  the log and have instead the
    log metropolis ratio and have a simpler calculation. We then need to compare this to
    the log of a uniform. */
                 lmr = -RSS + oldRSS + lratio;

                 U = runif(0,1);
                 if(lmr > log(U)){
                         oldVcmax = rnewVcmax;
                         oldAlpha = rnewAlpha;
                         oldRSS = RSS;
                         n1++;
                 }

                 REAL(mat1)[i*3] = oldVcmax ;
                 REAL(mat1)[i*3 + 1] = oldAlpha ;
                 REAL(mat1)[i*3 + 2] = oldRSS;
         }

         PutRNGstate();

         REAL(accept)[0] = n1;

         SET_VECTOR_ELT(lists,0,accept);
         SET_VECTOR_ELT(lists,1,mat1);

         SET_STRING_ELT(names,0,mkChar("accept"));
         SET_STRING_ELT(names,1,mkChar("resuMC"));

         setAttrib(lists,R_NamesSymbol,names);
         UNPROTECT(4);

         return(lists);
 }

double RSS_C4photo	(	double	oAssim[nObs],
		double	oQp[nObs],
		double	oTemp[nObs],
		double	oRH[nObs],
		double	vmax,
		double	alpha,
		double	kparm,
		double	theta,
		double	beta,
		double	Rd,
		double	Catm,
		double	b0,
		double	b1,
		double	StomWS,
		int	ws,
		double	upperT,
		double	lowerT
	)

                                                                                                                    { /*\ref{eqn:Rd}*/
         extern int nObs;
         struct c4_str tmp;
         int i;
         double RSS = 0.0, diff = 0.0;

         for(i = 0;i < nObs; i++){

                 tmp = c4photoC(oQp[i],oTemp[i],oRH[i],vmax,alpha,kparm,theta, beta, Rd,b0,b1,StomWS,Catm,ws,upperT,lowerT);
                 diff = oAssim[i] - tmp.Assim;
                 RSS += diff * diff;

         }
         return(RSS);
 }

Functions

Function Documentation
