#include <R.h>
#include <Rmath.h>
#include <Rinternals.h>
#include "c3photo.h"
#include "AuxBioCro.h"
#include "c3EvapoTrans.h"

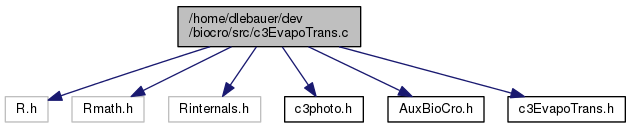

Include dependency graph for c3EvapoTrans.c:
Functions
struct ET_Str	c3EvapoTrans (double Rad, double Itot, double Airtemperature, double RH, double WindSpeed, double LeafAreaIndex, double CanopyHeight, double vcmax2, double jmax2, double Rd2, double b02, double b12, double Catm2, double O2, double theta2, double StomWS, int ws)
Function Documentation

struct ET_Str c3EvapoTrans	(	double	Rad,
		double	Itot,
		double	Airtemperature,
		double	RH,
		double	WindSpeed,
		double	LeafAreaIndex,
		double	CanopyHeight,
		double	vcmax2,
		double	jmax2,
		double	Rd2,
		double	b02,
		double	b12,
		double	Catm2,
		double	O2,
		double	theta2,
		double	StomWS,
		int	ws
	)
 {
         /* creating the structure to return */
         struct ET_Str tmp;
         struct c3_str tmpc3;

         const double LeafWidth = 0.04;
         const double kappa = 0.41;
         const double WindSpeedHeight = 5;
         const double dCoef = 0.77;
         const double tau = 0.2;
         const double ZetaCoef = 0.026;
         const double ZetaMCoef = 0.13;
         const double LeafReflectance = 0.2;
         const double SpecificHeat = 1010;

         double Tair, WindSpeedTopCanopy;
         double DdryA, LHV, SlopeFS, SWVC;
         double LayerRelativeHumidity, LayerWindSpeed, totalradiation;
         double LayerConductance, DeltaPVa, PsycParam, ga;
         double BoundaryLayerThickness, DiffCoef,LeafboundaryLayer;
         double d, Zeta, Zetam, ga0, ga1, ga2;
         double Ja, Deltat;
         double PhiN;
         double TopValue, BottomValue;
         double EPen, TransR,EPries;
         double OldDeltaT, rlc, ChangeInLeafTemp;
         int Counter;

         WindSpeedTopCanopy = WindSpeed;
         Tair = Airtemperature;

         if(CanopyHeight < 0.1)
                 CanopyHeight = 0.1;

         DdryA = TempToDdryA(Tair) ;
         LHV = TempToLHV(Tair) * 1e6 ;
         /* Here LHV is given in MJ kg-1 and this needs to be converted
            to Joules kg-1  */
         SlopeFS = TempToSFS(Tair) * 1e-3;
         SWVC = TempToSWVC(Tair) * 1e-3;

         /* FIRST CALCULATIONS*/

         Zeta = ZetaCoef * CanopyHeight;
         Zetam = ZetaMCoef * CanopyHeight;
         d = dCoef * CanopyHeight;

         /* Relative Humidity is giving me a headache */
         /* RH2 = RH * 1e2; A high value of RH makes the
            difference of temperature between the leaf and the air huge.
            This is what is causing the large difference in DeltaT at the
            bottom of the canopy. I think it is very likely.  */
         LayerRelativeHumidity = RH * 100;
         if(LayerRelativeHumidity > 100)
                 error("LayerRelativehumidity > 100");

         if(WindSpeed < 0.5) WindSpeed = 0.5;

         LayerWindSpeed = WindSpeed;

         /*' Convert light assuming 1 µmol PAR photons = 0.235 J/s Watts*/
         totalradiation = Itot * 0.235;

         tmpc3 = c3photoC(Rad,Airtemperature,RH,vcmax2,jmax2,Rd2,b02,b12,Catm2,O2,theta2,StomWS,ws);
         LayerConductance = tmpc3.Gs;

         /* Convert mmoles/m2/s to moles/m2/s
            LayerConductance = LayerConductance * 1e-3
            Convert moles/m2/s to mm/s
            LayerConductance = LayerConductance * 24.39
            Convert mm/s to m/s
            LayerConductance = LayerConductance * 1e-3 */

         LayerConductance = LayerConductance * 1e-6 * 24.39;

         /* Thornley and Johnson use m s^-1 on page 418 */

         /* prevent errors due to extremely low Layer conductance */
         if(LayerConductance <=0)
                 LayerConductance = 0.01;


         if(SWVC < 0)
                 error("SWVC < 0");
         /* Now RHprof returns relative humidity in the 0-1 range */
         DeltaPVa = SWVC * (1 - LayerRelativeHumidity / 100);

         PsycParam =(DdryA * SpecificHeat) / LHV;

         /* Ja = (2 * totalradiation * ((1 - LeafReflectance - tau) / (1 - tau))) * LeafAreaIndex; */
         /* It seems that it is not correct to multiply by the leaf area index. Thornley
            and johnson pg. 400 suggest using (1-exp(-k*LAI) but note that for a full canopy
            this is 1. so I'm using 1 as an approximation. */
         Ja = (2 * totalradiation * ((1 - LeafReflectance - tau) / (1 - tau)));
         /* Calculation of ga */
         /* According to thornley and Johnson pg. 416 */
         ga0 = pow(kappa,2) * LayerWindSpeed;
         ga1 = log((WindSpeedHeight + Zeta - d)/Zeta);
         ga2 = log((WindSpeedHeight + Zetam - d)/Zetam);
         ga = ga0/(ga1*ga2);

         /*  Rprintf("ga: %.5f \n", ga); */
         if(ga < 0)
                 error("ga is less than zero");

         DiffCoef = (2.126 * 1e-5) + ((1.48 * 1e-7) * Airtemperature);
         BoundaryLayerThickness = 0.004 * sqrt(LeafWidth / LayerWindSpeed);
         LeafboundaryLayer = DiffCoef / BoundaryLayerThickness;

         /* Temperature of the leaf according to Campbell and Norman (1998) Chp 4.*/
         /* This version is non-iterative and an approximation*/
         /* Stefan-Boltzmann law: B = sigma * T^4. where sigma is the Boltzmann
            constant: 5.67 * 1e-8 W m^-2 K^-4. */

         /* From Table A.3 in the book we know that*/

         /*  rlc = (4 * (5.67*1e-8) * pow(273 + Airtemperature, 3) * Deltat) * LeafAreaIndex;   */
         /*  PhiN = Ja - rlc; */

         /*  dd = 0.72 * LeafWidth; */
         /*  gHa = 1.4 * 0.135 * sqrt(LayerWindSpeed * 0.72 * LeafWidth);  */
         /*  gva = 1.4 * 0.147 * sqrt(LayerWindSpeed * 0.72 * LeafWidth);  */

         /*  TopValue = Ja - (SWVC/7.28) * 5.67*1e-8 * pow(Airtemperature + 273.15,4) - LHV * LayerConductance * 1e-3 * DeltaPVa / 101.3; */
         /* Here I divide SWVC by 7.28 to approximately change from g/m3 to kPa */
         /* I'm also multiplying Layer conductance by 1e-3 since it should be in mol m^-2 s^-1 */

         /*  BottomValue = SpecificHeat * gHr + LHV * SlopeFS * LayerConductance * 1e-3;  */

         /*  Deltat = Airtemperature + TopValue/BottomValue; */

         /*  PhiN = TopValue; */

         /* This is the original from WIMOVAC*/
         Deltat = 0.01;
         ChangeInLeafTemp = 10;

         Counter = 0;
         while( (ChangeInLeafTemp > 0.5) && (Counter <= 10))
         {
                 OldDeltaT = Deltat;

                 /*         rlc = (4 * (5.67*1e-8) * pow(273 + Airtemperature, 3) * Deltat) * LeafAreaIndex;   */
                 rlc = (4 * (5.67*1e-8) * pow(273 + Airtemperature, 3) * Deltat);

                 PhiN = (Ja - rlc);


                 TopValue = PhiN * (1 / ga + 1 / LayerConductance) - LHV * DeltaPVa;
                 BottomValue = LHV * (SlopeFS + PsycParam * (1 + ga / LayerConductance));
                 Deltat = TopValue / BottomValue;
                 if(Deltat > 5)  Deltat = 5;
                 if(Deltat < -5) Deltat = -5;


                 ChangeInLeafTemp = OldDeltaT - Deltat;
                 if(ChangeInLeafTemp <0)
                         ChangeInLeafTemp = -ChangeInLeafTemp;
                 Counter++;
         }


         if(PhiN < 0)
                 PhiN = 0;

         TransR = (SlopeFS * PhiN + (LHV * PsycParam * ga * DeltaPVa)) / (LHV * (SlopeFS + PsycParam * (1 + ga / LayerConductance)));

         EPries = 1.26 * ((SlopeFS * PhiN) / (LHV * (SlopeFS + PsycParam)));

         EPen = (((SlopeFS * PhiN) + LHV * PsycParam * ga * DeltaPVa)) / (LHV * (SlopeFS + PsycParam));

         /* This values need to be converted from Kg/m2/s to
            mmol H20 /m2/s according to S Humphries */
         /*res[1,1] = EPen * 10e6 / 18;*/
         /*res[1,2] = EPries * 10e6 / 18;*/
         /* 1e3 - kgrams to grams  */
         /* 1e3 - mols to mmols */
         /*  res[0] = ((TransR * 1e3) / 18) * 1e3 ; */
         /*  res[1] = Deltat; */
         /*  res[2] = LayerConductance; */
         /* Let us return the structure now */

         tmp.TransR = TransR * 1e6 / 18;
         tmp.EPenman = EPen * 1e6 / 18;
         tmp.EPriestly = EPries * 1e6 / 18;
         tmp.Deltat = Deltat;
         tmp.LayerCond = LayerConductance * 1e6 * (1/24.39);
         /*    tmp.LayerCond = RH2;   */
         /*   tmp.LayerCond = 0.7; */
         return(tmp);
 }
